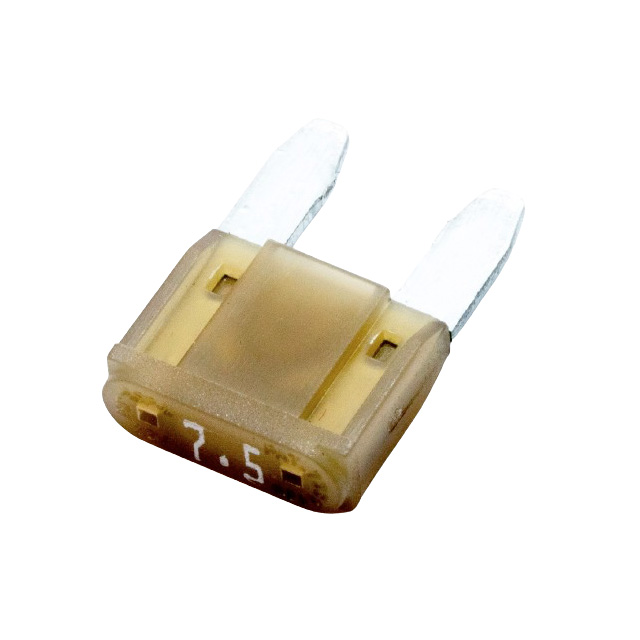

ANM-7.5A

Active

OptiFuse

FUSE AUTO 7.5A 32VDC BLADE MINI

Search across all available documentation for this part.

Active

OptiFuse

FUSE AUTO 7.5A 32VDC BLADE MINI

Technical Specifications

Parameters and characteristics for this part

Specification	ANM-7.5A

Approval Agency	ISO, SAE
Breaking Capacity @ Rated Voltage	1 kA
Color	Brown
Current Rating (Amps)	7.5 A
Fuse Type	Automotive
Mounting Type	Requires Holder
Package / Case	Blade, Miniature
Response Time	Fast Blow
Size / Dimension [x]	0.429 "
Size / Dimension [x]	10.9 mm
Size / Dimension [y]	0.15 "
Size / Dimension [y]	3.8 mm
Size / Dimension [z]	9.2 mm
Size / Dimension [z]	0.362 in
Voltage Rating - DC	32 V

FUSE AUTO 7.5A 32VDC BLADE MINI

Part	Current Rating (Amps)	Approval Agency	Breaking Capacity @ Rated Voltage	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Mounting Type	Color	Package / Case	Voltage Rating - DC	Fuse Type	Response Time
OptiFuse ANM-7.5A	7.5 A	ISO, SAE	1 kA	9.2 mm	0.15 "	0.362 in	3.8 mm	0.429 "	10.9 mm	Requires Holder	Brown	Blade, Miniature	32 V	Automotive	Fast Blow

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

7.5 A AC 32 V DC Fuse Automotive Requires Holder Blade, Miniature
