Description
General part information

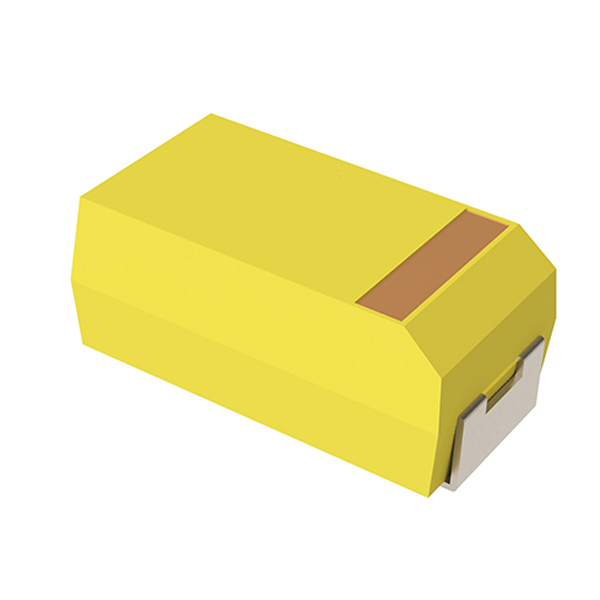

T498B155M025ATE4K2
1.5 µF Molded Tantalum Capacitors 25 V 1411 (3528 Metric) 4.2Ohm @ 100kHz
Technical Specifications
Parameters and characteristics for this part
| Specification | T498B155M025ATE4K2 |
|---|---|
| Capacitance | 1.5 µF |
| ESR (Equivalent Series Resistance) | 4.2 Ohm |
| Features | High Temperature, Automotive |
| Height - Seated (Max) | 0.083 in |
| Lifetime | 2000 Hrs |
| Manufacturer Size Code | B |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 1411 (3528 Metric) |
| Package Diameter | 3528 mm |
| Package Name | 1411 |
| Ratings | AEC-Q200 |
| Size / Dimension Length | 0.138 in |
| Size / Dimension Width | 0.11 in |
| Tolerance | 20 % |
| Type | Molded |
| Voltage - Rated | 25 VAC |
