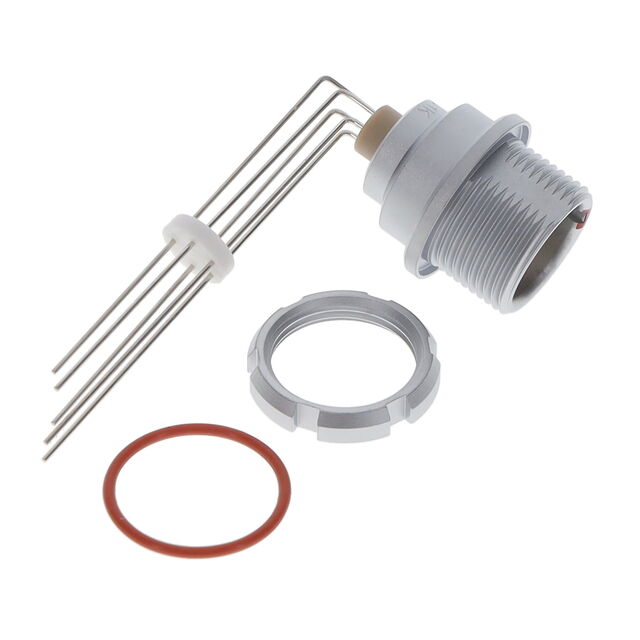

Specification	EEG.1K.305.CLV

Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	59 µin
Contact Material	Bronze
Current Rating	6 A
Fastening Type	Push-Pull
Ingress Protection Description	Waterproof, Water Resistant, Dust Tight
Ingress Protection IP Rating	IP68, IP66
Insert Material	Polyetheretherketone, PEEK
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead, Front Side Nut
Mounting Type	Panel Mount, Through Hole, Right Angle
Number of Positions	5
Operating Temperature (Max)	200 °C
Operating Temperature (Min)	-55 °C
Orientation	G
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Brass
Shell Size - Insert	305
Shell Size - Insert	305
Shielding	Shielded
Termination	Solder

EEG.1K Series

Part	Shell Material	Number of Positions	Shell Finish	Ingress Protection Description	Ingress Protection IP Rating	Current Rating	Termination	Operating Temperature (Min)	Operating Temperature (Max)	Material Flammability Rating	Connector Type	Orientation	Fastening Type	Color	Mounting Type	Contact Finish - Mating	Primary Material	Shielding	Shell Size - Insert	Shell Size - Insert	Mounting Feature	Contact Material	Insert Material	Contact Finish Thickness - Mating
LEMO EEG.1K.308.CLV	Brass	8	Chrome	Dust Tight Water Resistant Waterproof	IP66 IP68	5 A	Solder	-55 °C	200 °C	UL94 V-0	Female Sockets Receptacle	G	Push-Pull	Silver	Panel Mount Right Angle Through Hole	Gold	Metal	Shielded	308	308	Bulkhead Front Side Nut	Bronze	PEEK Polyetheretherketone	59 µin
LEMO EEG.1K.304.CLN	Brass	4	Chrome	Dust Tight Water Resistant Waterproof	IP66 IP68	10 A	Solder	-55 °C	200 °C	UL94 V-0	Female Sockets Receptacle	G	Push-Pull	Silver	Panel Mount Through Hole	Gold	Metal	Shielded	304	304	Bulkhead Front Side Nut	Bronze	PEEK Polyetheretherketone	59 µin
LEMO EEG.1K.314.CLN	Brass	14	Chrome	Dust Tight Water Resistant Waterproof	IP66 IP68	2 A	Solder	-55 °C	200 °C	UL94 V-0	Female Sockets Receptacle	G	Push-Pull	Silver	Panel Mount Through Hole	Gold	Metal	Shielded	314	314	Bulkhead Front Side Nut	Bronze	PEEK Polyetheretherketone	59 µin
LEMO EEG.1K.304.CYM	Brass	4	Chrome	Dust Tight Water Resistant Waterproof	IP66 IP68	10 A	Crimp	-55 °C	200 °C	UL94 V-0	Female Sockets Receptacle	G	Push-Pull	Silver	Panel Mount	Gold	Metal	Shielded	304	304	Bulkhead Front Side Nut	Bronze	PEEK Polyetheretherketone	59 µin
LEMO EEG.1K.305.CLN	Brass	5	Chrome	Dust Tight Water Resistant Waterproof	IP66 IP68	9 A	Solder	-55 °C	200 °C	UL94 V-0	Female Sockets Receptacle	G	Push-Pull	Silver	Panel Mount Through Hole	Gold	Metal	Shielded	305	305	Bulkhead Front Side Nut	Bronze	PEEK Polyetheretherketone	59 µin
LEMO EEG.1K.308.KLL	Brass	8	Black Chrome	Dust Tight Water Resistant Waterproof	IP66 IP68	5 A	Solder Cup	-55 °C	200 °C	UL94 V-0	Female Sockets Receptacle	G	Push-Pull	Black	Panel Mount	Gold	Metal	Shielded	308	308	Bulkhead Front Side Nut	Bronze	PEEK Polyetheretherketone	59 µin
LEMO EEG.1K.307.CLL	Brass	7	Chrome	Dust Tight Water Resistant Waterproof	IP66 IP68	7 A	Solder Cup	-55 °C	200 °C	UL94 V-0	Female Sockets Receptacle	G	Push-Pull	Silver	Panel Mount	Gold	Metal	Shielded	307	307	Bulkhead Front Side Nut	Bronze	PEEK Polyetheretherketone	59 µin
LEMO EEG.1K.308.CYM	Brass	8	Chrome	Dust Tight Water Resistant Waterproof	IP66 IP68	5 A	Crimp	-55 °C	200 °C	UL94 V-0	Female Sockets Receptacle	G	Push-Pull	Silver	Panel Mount	Gold	Metal	Shielded	308	308	Bulkhead Front Side Nut	Bronze	PEEK Polyetheretherketone	59 µin
LEMO EEG.1K.314.CLV	Brass	14	Chrome	Dust Tight Water Resistant Waterproof	IP66 IP68	2 A	Solder	-55 °C	200 °C	UL94 V-0	Female Sockets Receptacle	G	Push-Pull	Silver	Panel Mount Right Angle Through Hole	Gold	Metal	Shielded	314	314	Bulkhead Front Side Nut	Bronze	PEEK Polyetheretherketone	59 µin
LEMO EEG.1K.302.CLL	Brass	2	Chrome	Dust Tight Water Resistant Waterproof	IP66 IP68	15 A	Solder Cup	-55 °C	200 °C	UL94 V-0	Female Sockets Receptacle	G	Push-Pull	Silver	Panel Mount	Gold	Metal	Shielded	302	302	Bulkhead Front Side Nut	Bronze	PEEK Polyetheretherketone	59 µin
