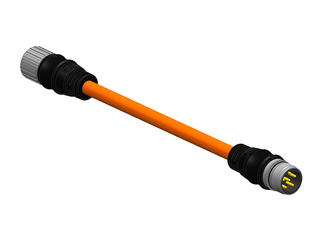

Specification	1204800621

1st Connector Gender	Male Pins
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	6 positions
1st Connector Number of Positions Loaded	All
1st Connector Orientation	Keyed
1st Connector Shell Size - Insert	M23
1st Connector Type	Receptacle
2nd Connector Gender	Female Sockets
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Connector Number of Positions	6
2nd Connector Number of Positions Loaded	All
2nd Connector Orientation	Keyed
2nd Connector Shell Size - Insert (Code)	M23
2nd Connector Type	Plug
Assembly Configuration	Standard
Cable Material	Thermoplastic Polyurethane (TPU)
Cable Type	Round
Color	Orange
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Length	6.56 ft
Shielding	Shielded
Usage	Industrial Environments

120480 Series

Brad M23 Power Single-Ended Cordset, 8 Poles, Female (Straight) to Pigtail, 19-16 AWG, Orange TPU WSOR Cable, 5.0m (16.40') Length

Part	2nd Connector Type	Assembly Configuration	Ingress Protection Description	Ingress Protection IP Rating	1st Connector Gender	1st Connector Number of Positions	Cable Material	Cable Type	1st Connector Shell Size - Insert	1st Connector Number of Positions Loaded	Color	1st Connector Orientation	Length	1st Connector Mounting Type	1st Connector Type	Shielding	Usage	2nd Connector Orientation	2nd Connector Shell Size - Insert (Code)	2nd Connector Number of Positions Loaded	2nd Connector Number of Positions	2nd Connector Mounting Type	2nd Connector Gender
Molex 1204800460	Wire Leads	Standard	Dust Tight Waterproof	IP67	Female Sockets	8 positions	Thermoplastic Polyurethane (TPU)	Round	M23	All	Orange	Keyed	3.28 ft	Free Hanging (In-Line)	Plug	Shielded	Industrial Environments
Molex 1204800595	Plug	Standard	Dust Tight Waterproof	IP67	Male Pins	8 positions	Thermoplastic Polyurethane (TPU)	Round	M23	All	Orange	Keyed	65.6 ft	Free Hanging (In-Line)	Receptacle	Shielded	Industrial Environments	Keyed	M23	All	8	Free Hanging (In-Line)	Female Sockets

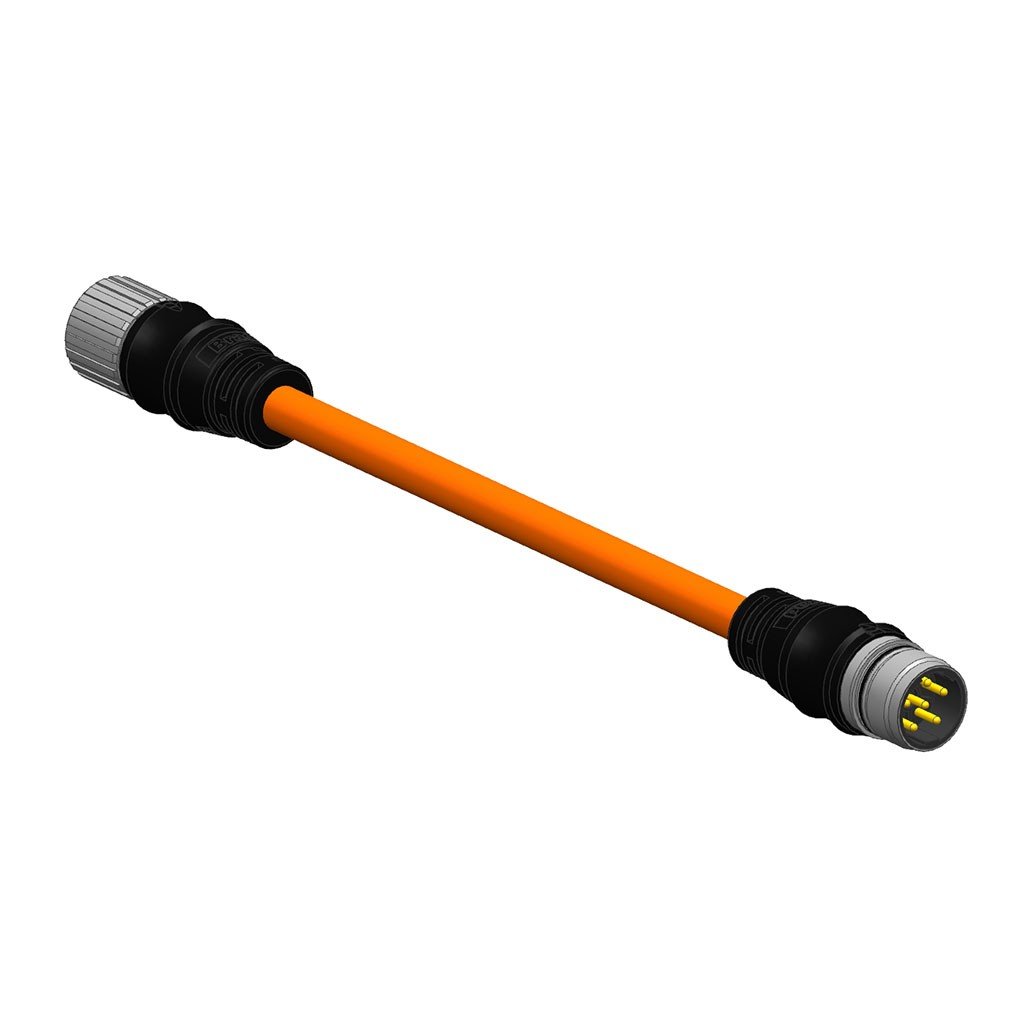

Molex 1204800591	Plug	Standard	Dust Tight Waterproof	IP67	Male Pins	8 positions	Thermoplastic Polyurethane (TPU)	Round	M23	All	Orange	Keyed	13.12 ft	Free Hanging (In-Line)	Receptacle	Shielded	Industrial Environments	Keyed	M23	All	8	Free Hanging (In-Line)	Female Sockets
Molex 1204800589	Plug	Standard	Dust Tight Waterproof	IP67	Male Pins	8 positions	Thermoplastic Polyurethane (TPU)	Round	M23	All	Orange	Keyed	6.56 ft	Free Hanging (In-Line)	Receptacle	Shielded	Industrial Environments	Keyed	M23	All	8	Free Hanging (In-Line)	Female Sockets
Molex 1204800588	Plug	Standard	Dust Tight Waterproof	IP67	Male Pins	8 positions	Thermoplastic Polyurethane (TPU)	Round	M23	All	Orange	Keyed	3.28 ft	Free Hanging (In-Line)	Receptacle	Shielded	Industrial Environments	Keyed	M23	All	8	Free Hanging (In-Line)	Female Sockets

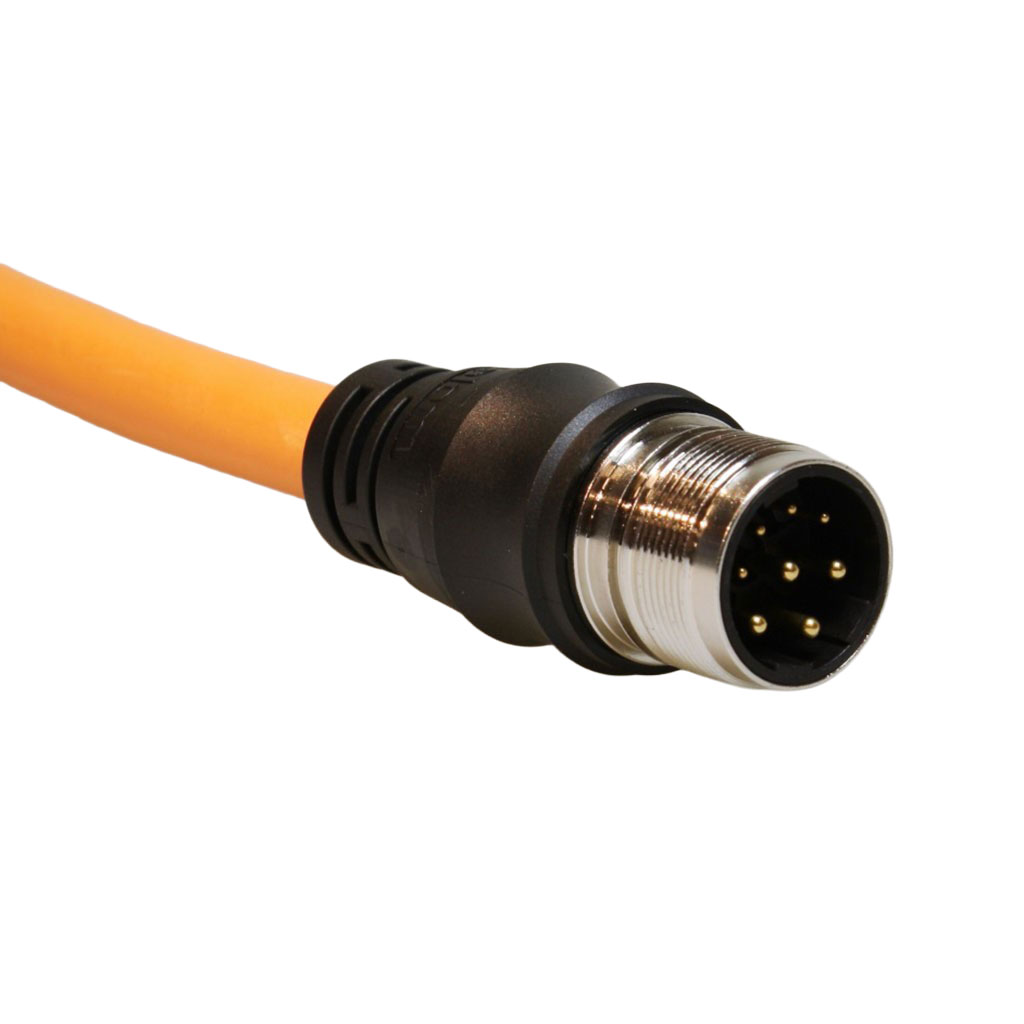

Molex 1204800471	Wire Leads	Standard	Dust Tight Waterproof	IP67	Male Pins	8 positions	Thermoplastic Polyurethane (TPU)	Round	M23	All	Orange	Keyed	13.12 ft	Free Hanging (In-Line)	Receptacle	Shielded	Industrial Environments
Molex 1204800472	Wire Leads	Standard	Dust Tight Waterproof	IP67	Male Pins	8 positions	Thermoplastic Polyurethane (TPU)	Round	M23	All	Orange	Keyed	16.4 ft	Free Hanging (In-Line)	Receptacle	Shielded	Industrial Environments
Molex 1204800534	Wire Leads	Standard	Dust Tight Waterproof	IP67	Male Pins	6 positions	Thermoplastic Polyurethane (TPU)	Round	M23	All	Orange	Keyed	9.84 ft	Free Hanging (In-Line)	Receptacle	Shielded	Industrial Environments
Molex 1204800469	Wire Leads	Standard	Dust Tight Waterproof	IP67	Male Pins	8 positions	Thermoplastic Polyurethane (TPU)	Round	M23	All	Orange	Keyed	6.56 ft	Free Hanging (In-Line)	Receptacle	Shielded	Industrial Environments

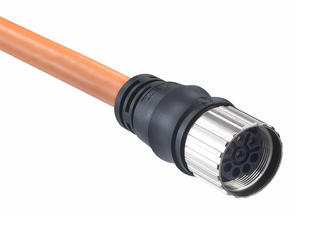

Molex 1204800464	Wire Leads	Standard	Dust Tight Waterproof	IP67	Female Sockets	8 positions	Thermoplastic Polyurethane (TPU)	Round	M23	All	Orange	Keyed	16.4 ft	Free Hanging (In-Line)	Plug	Shielded	Industrial Environments
