12SWS1047
ActiveEssentra Components

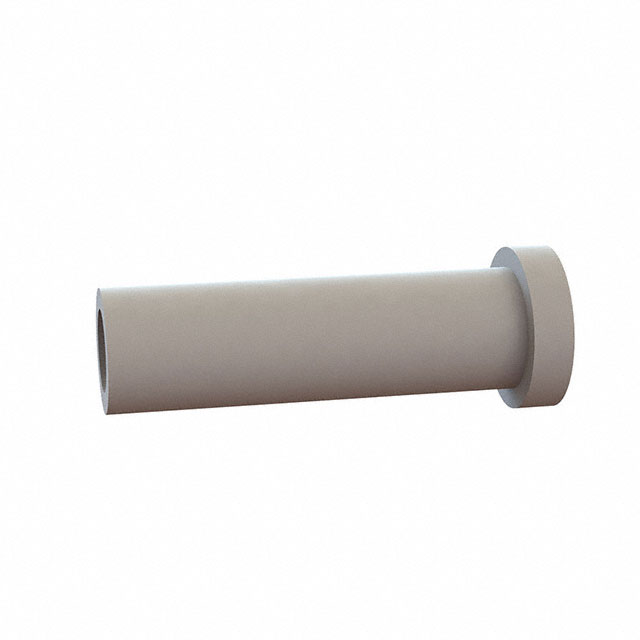

SHOULDER WASHER .250 ID .500 OD
12SWS1047
ActiveEssentra Components
SHOULDER WASHER .250 ID .500 OD
Description
General part information
12SWS1047
Shoulder Washer 0.125" (3.18mm) Thick Nylon
Technical Specifications
Parameters and characteristics for this part
| Specification | 12SWS1047 |
|---|---|
| Diameter - Inside (Maximum) | 0.25 in |
| Diameter - Inside (Nominal) | 0.25 in |
| Diameter - Outside | 0.375 in |
| Diameter - Outside (Nominal) | 0.375 in |
| Diameter - Shoulder | 0.5 in |
| Length - Below Head | 1.25 in |
| Material | Nylon |
| Thickness - Overall | 0.125 in |
