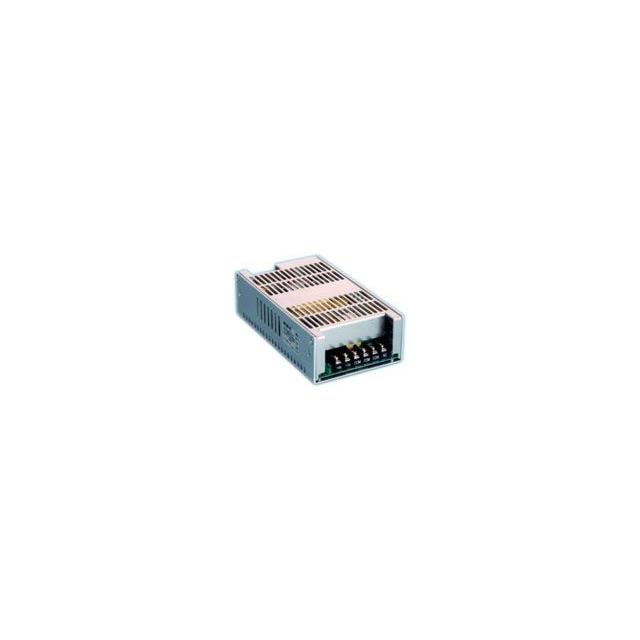

PMK150S-15E
ActiveAstrodyne TDI
AC/DC CONVERTER 15V 150W
PMK150S-15E
ActiveAstrodyne TDI
AC/DC CONVERTER 15V 150W
Description
General part information
PMK150S-15E
Enclosed AC DC Converters 1 Output 15V 90 ~ 264 VAC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | PMK150S-15E |
|---|---|
| Applications | ITE (Commercial), Medical |
| Approval Agency | UL, CB, CE, cURus |
| Current - Output 1 | 10 A |
| Efficiency | 75 % |
| Features | Universal Input |
| Minimum Load Required | No |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -10 °C |
| Power (Watts) | 150 W |
| Size / Dimension Height | 1.6 in |
| Size / Dimension Length | 5.05 in |
| Size / Dimension Width | 3.17 in |
| Standard Number | 60601-1, 60950-1 |
| Type | Enclosed |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 90 V |
| Voltage - Isolation | 4242 V |
| Voltage - Output 1 | 15 V |
