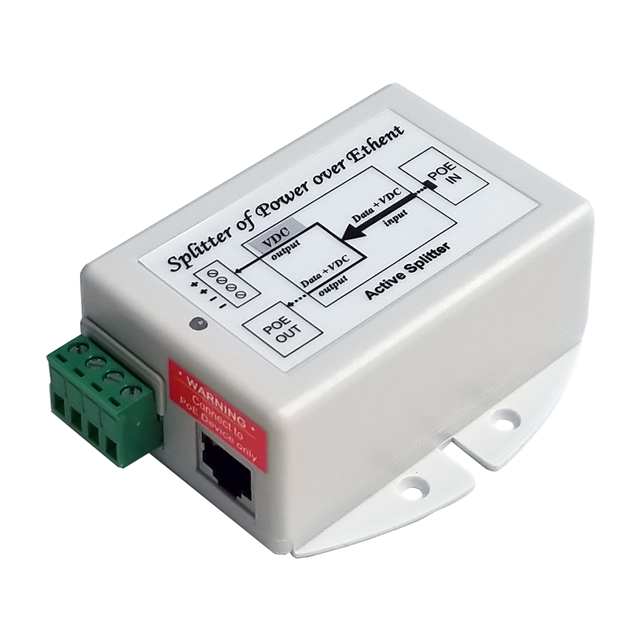

POE-SPLT-4824G-P

Active

Tycon Systems Inc.

48VDC 802.3AT POE INPUT, 48V 802

Search across all available documentation for this part.

Active

Tycon Systems Inc.

48VDC 802.3AT POE INPUT, 48V 802

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	POE-SPLT-4824G-P	POE-S Series

Approval Agency	FCC	FCC
Compliance	IEEE802.3at	IEEE802.3at
Current - Output	830 mA	830 mA
Data Rate	10 Mbps, 1000 Mbps, 100 Mbps	10 - 1000 Mbps
Efficiency	85 %	85 %
Features	SCP, UVLO, OVP, OCP	SCP, UVLO, OVP, OCP
For Use With/Related Products	Ethernet, RJ45	Ethernet, RJ45
Input Connector	RJ45 (Data, Power)	RJ45 (Data, Power)
Mounting Type	Chassis Mount	Chassis Mount
Number of Ports	1	1
Operating Temperature [Max]	65 °C	65 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Output Connector	RJ45 (Data, Power)	RJ45 (Data, Power)
Power (Watts) - Per Port	20 W	20 W
Size / Dimension [x]	83.8 mm	83.8 mm
Size / Dimension [x]	3.3 "	3.3 "
Size / Dimension [y]	78 mm	78 mm
Size / Dimension [y]	3.07 in	3.07 in
Size / Dimension [z]	1.4 "	1.4 "
Size / Dimension [z]	35.6 mm	35.6 mm
Type	Splitter, PoE Splitter	PoE Splitter, Splitter
Voltage - Output	24 V	24 V

GIGABIT POE SPLITTER.48VDC 802.3

Part	Type	For Use With/Related Products	Approval Agency	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Current - Output	Input Connector	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output	Output Connector	Compliance	Efficiency	Data Rate	Power (Watts) - Per Port	Features	Mounting Type	Number of Ports
Tycon Systems Inc. POE-SPLT-48G-VUB	PoE Splitter	Ethernet, RJ45
Tycon Systems Inc. POE-SPLT-4824AC	PoE Splitter	Ethernet, RJ45
Tycon Systems Inc. POE-SPLT-4812G-P	PoE Splitter	Ethernet, RJ45
Tycon Systems Inc. POE-SPLT-4824G-P	PoE Splitter, Splitter	Ethernet, RJ45	FCC	78 mm	83.8 mm	3.3 "	3.07 in	1.4 "	35.6 mm	830 mA	RJ45 (Data, Power)	65 °C	-30 ░C	24 V	RJ45 (Data, Power)	IEEE802.3at	85 %	10 Mbps, 100 Mbps, 1000 Mbps	20 W	OCP, OVP, SCP, UVLO	Chassis Mount	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

PoE Splitter Ethernet, RJ45

Technical documentation and resources
