CBL ASSY IPEX MHF1 PLUG-PLUG 3"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CBG-2IPX-3IN-6O

Active

Lighthorse Technologies, Inc

CBL ASSY IPEX MHF1 PLUG-PLUG 3"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.72
		10	$ 4.44
		25	$ 4.19
		50	$ 3.97
		100	$ 3.77
		250	$ 3.43
		500	$ 3.14
		1000	$ 2.90

Description

General part information

CBG-2IPX Series

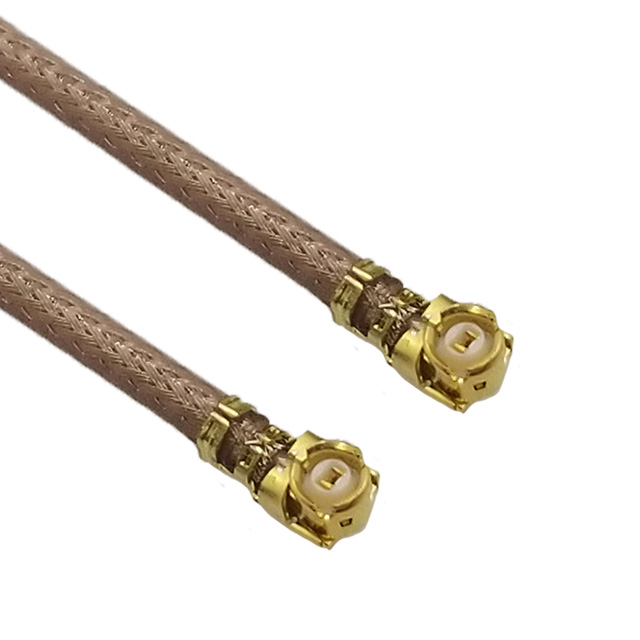

Cable Assembly Coaxial U.FL (UMCC), IPEX MHF1 to U.FL (UMCC), IPEX MHF1 RG-178 3.000" (76.20mm)

Documents

Technical documentation and resources

Datasheet

Specification	CBG-2IPX-3IN-6O	CBG-2IPX Series

1st Connector	Right Angle, IPEX MHF1 Plug, U.FL (UMCC)	Right Angle, IPEX MHF1 Plug, U.FL (UMCC), I-PEX MHF1 Plug
1st Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
1st Contact Gender	Female	Female
2nd Connector	U.FL (UMCC), IPEX MHF1 Plug, Right Angle	U.FL (UMCC), IPEX MHF1 Plug, Right Angle, Right Angle, I-PEX MHF1 Plug, U.FL (UMCC)
2nd Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
2nd Contact Gender	Female	Female
Cable Impedance	50 Ohms	50 Ohms
Cable Type	RG-178	RG-178
Color	Copper	Copper
Features	Opposite Orientation, Shielded	Opposite Orientation, Shielded
Frequency - Max [Max]	9 GHz	9 GHz
Length	3 in	1.5 - 12 "
Length	76.2 mm	38.1 - 304.8 mm
Length	-	1 - 7.5 in
Length	-	25.4 - 190.5 mm
Operating Temperature [Max]	90 °C	90 °C
Operating Temperature [Min]	-40 °C	-40 °C
Overall Impedance	50 Ohms	50 Ohms
Style	IPEX MHF1 to U.FL (UMCC), U.FL (UMCC), IPEX MHF1	IPEX MHF1 to U.FL (UMCC), U.FL (UMCC), IPEX MHF1, I-PEX MHF1 to U.FL (UMCC), I-PEX MHF1

Part	1st Connector	Frequency - Max [Max]	Length	Length	Features	1st Contact Gender	Style	2nd Connector	Cable Impedance	2nd Contact Gender	Cable Type	Operating Temperature [Max]	Operating Temperature [Min]	Color	Overall Impedance	2nd Connector Mounting Type	1st Connector Mounting Type	Length [x]	Length [x]
Lighthorse Technologies, Inc CBG-2IPX-11.5IN-6O	IPEX MHF1 Plug, Right Angle, U.FL (UMCC)	9 GHz	292.1 mm	11.5 "	Opposite Orientation, Shielded	Female	IPEX MHF1, IPEX MHF1 to U.FL (UMCC), U.FL (UMCC)	U.FL (UMCC), IPEX MHF1 Plug, Right Angle	50 Ohms	Female	RG-178	90 °C	-40 °C	Copper	50 Ohms	Free Hanging (In-Line)	Free Hanging (In-Line)
Lighthorse Technologies, Inc CBG-2IPX-5IN-6O	IPEX MHF1 Plug, Right Angle, U.FL (UMCC)	9 GHz	127 mm	5 in	Opposite Orientation, Shielded	Female	IPEX MHF1, IPEX MHF1 to U.FL (UMCC), U.FL (UMCC)	U.FL (UMCC), IPEX MHF1 Plug, Right Angle	50 Ohms	Female	RG-178	90 °C	-40 °C	Copper	50 Ohms	Free Hanging (In-Line)	Free Hanging (In-Line)
Lighthorse Technologies, Inc CBG-2IPX-1IN-6O	IPEX MHF1 Plug, Right Angle, U.FL (UMCC)	9 GHz			Opposite Orientation, Shielded	Female	IPEX MHF1, IPEX MHF1 to U.FL (UMCC), U.FL (UMCC)	U.FL (UMCC), IPEX MHF1 Plug, Right Angle	50 Ohms	Female	RG-178	90 °C	-40 °C	Copper	50 Ohms	Free Hanging (In-Line)	Free Hanging (In-Line)	1 in	25.4 mm
Lighthorse Technologies, Inc CBG-2IPX-11IN-6O	IPEX MHF1 Plug, Right Angle, U.FL (UMCC)	9 GHz	279.4 mm	11 "	Opposite Orientation, Shielded	Female	IPEX MHF1, IPEX MHF1 to U.FL (UMCC), U.FL (UMCC)	U.FL (UMCC), IPEX MHF1 Plug, Right Angle	50 Ohms	Female	RG-178	90 °C	-40 °C	Copper	50 Ohms	Free Hanging (In-Line)	Free Hanging (In-Line)
Lighthorse Technologies, Inc CBG-2IPX-8IN-6O	IPEX MHF1 Plug, Right Angle, U.FL (UMCC)	9 GHz	203.2 mm	8 in	Opposite Orientation, Shielded	Female	IPEX MHF1, IPEX MHF1 to U.FL (UMCC), U.FL (UMCC)	U.FL (UMCC), IPEX MHF1 Plug, Right Angle	50 Ohms	Female	RG-178	90 °C	-40 °C	Copper	50 Ohms	Free Hanging (In-Line)	Free Hanging (In-Line)
Lighthorse Technologies, Inc CBG-2IPX-7IN-6O	IPEX MHF1 Plug, Right Angle, U.FL (UMCC)	9 GHz	177.8 mm	7 in	Opposite Orientation, Shielded	Female	IPEX MHF1, IPEX MHF1 to U.FL (UMCC), U.FL (UMCC)	U.FL (UMCC), IPEX MHF1 Plug, Right Angle	50 Ohms	Female	RG-178	90 °C	-40 °C	Copper	50 Ohms	Free Hanging (In-Line)	Free Hanging (In-Line)
Lighthorse Technologies, Inc CBG-2IPX-10IN	I-PEX MHF1 Plug, Right Angle, U.FL (UMCC)	9 GHz	254 mm	10 in	Shielded	Female	I-PEX MHF1, I-PEX MHF1 to U.FL (UMCC), U.FL (UMCC)	I-PEX MHF1 Plug, Right Angle, U.FL (UMCC)	50 Ohms	Female	RG-178	90 °C	-40 °C	Copper	50 Ohms	Free Hanging (In-Line)	Free Hanging (In-Line)
