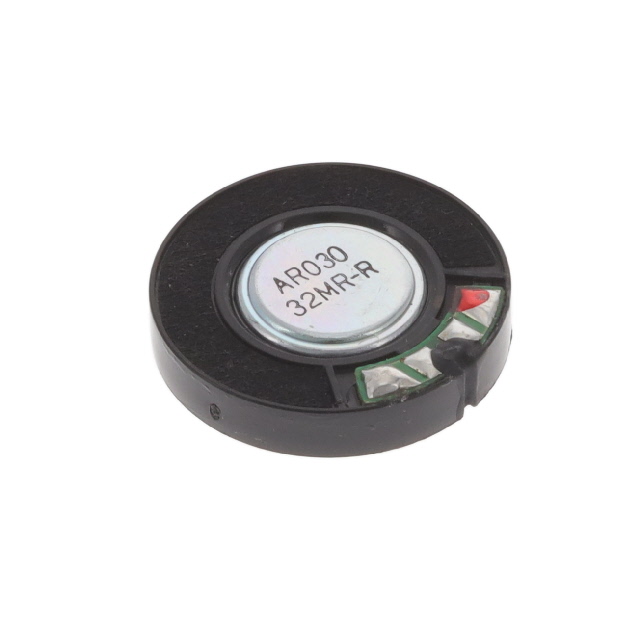

AR03032MR-R
ActivePUI AUDIO
RECEIVER, 60HZ TO 10KHZ, 32OHM, 20MW, 115DB, ROUND, 29.8 MM X 29.8 MM X 6.8 MM
Deep-Dive with AI
Search across all available documentation for this part.
AR03032MR-R
ActivePUI AUDIO
RECEIVER, 60HZ TO 10KHZ, 32OHM, 20MW, 115DB, ROUND, 29.8 MM X 29.8 MM X 6.8 MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | AR03032MR-R | AR03032MR Series |
|---|---|---|
| - | - | |
| Efficiency - dBA | 115 dBA | 115 dBA |
| Efficiency - Testing | 1mW/10mm | 1mW/10mm |
| Efficiency - Type | Sound Pressure Level (SPL) | Sound Pressure Level (SPL) |
| Frequency Range [Max] | 10 kHz | 10 kHz |
| Frequency Range [Min] | 60 Hz | 60 Hz |
| Height - Seated (Max) [Max] | 0.287 in | 0.287 in |
| Height - Seated (Max) [Max] | 7.3 mm | 7.3 mm |
| Impedance | 32 Ohms | 32 Ohms |
| Material - Cone | Polyester, Polyethylene Terephthalate (PET) | Polyester, Polyethylene Terephthalate (PET) |
| Material - Magnet | Nd-Fe-B | Nd-Fe-B |
| Port Location | Top | Top |
| Power - Max [Max] | 30 mW | 30 mW |
| Power - Rated | 20 mW | 20 mW |
| Shape | Round | Round |
| Size / Dimension [diameter] | 1.142 in | 1.142 in |
| Size / Dimension [diameter] | 29 mm | 29 mm |
| Technology | Magnetic | Magnetic |
| Termination | Solder Pads | Solder Pads |
| Type | Receiver | Receiver |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
AR03032MR Series
RECEIVER, 60HZ TO 10KHZ, 32OHM, 20MW, 115DB, ROUND, 29.8 MM X 29.8 MM X 6.8 MM
| Part | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Frequency Range [Max] | Frequency Range [Min] | Power - Rated | Port Location | Efficiency - Type | Power - Max [Max] | Termination | Type | Material - Magnet | Material - Cone | Technology | Efficiency - dBA | Efficiency - Testing | Shape | Size / Dimension [diameter] | Size / Dimension [diameter] | Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
PUI AUDIO AR03032MR-R | 0.287 in | 7.3 mm | 10 kHz | 60 Hz | 20 mW | Top | Sound Pressure Level (SPL) | 30 mW | Solder Pads | Receiver | Nd-Fe-B | Polyester, Polyethylene Terephthalate (PET) | Magnetic | 115 dBA | 1mW/10mm | Round | 1.142 in | 29 mm | 32 Ohms |
PUI AUDIO AR03032MR-R |
Description
General part information
AR03032MR Series
32 Ohms Receiver Speaker 20 mW 60 Hz ~ 10 kHz Top Round
