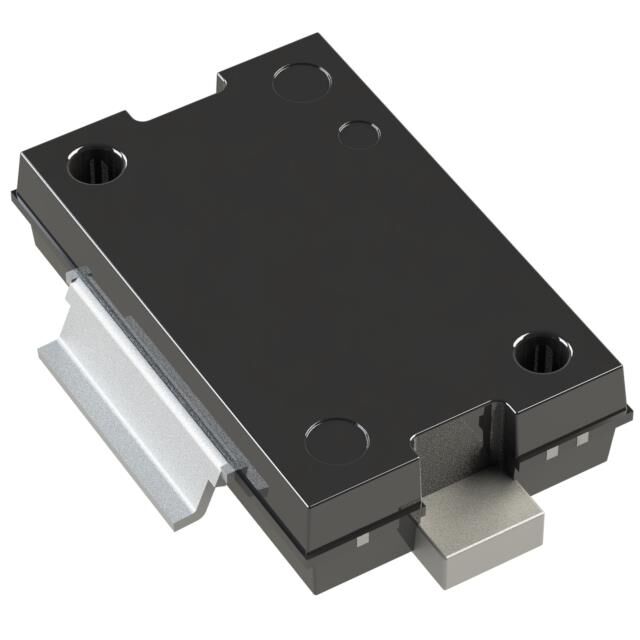

ART150PEGXY
ActiveAmpleon USA Inc.
RF MOSFET LDMOS 65V TO270
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ART150PEGXY
ActiveAmpleon USA Inc.
RF MOSFET LDMOS 65V TO270
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | ART150PEGXY | ART150 Series |
|---|---|---|
| Configuration | N-Channel | N-Channel |
| Current - Test | - | 20 mA |
| Current Rating (Amps) | 1.4 µA | 1.2 - 1.4 µA |
| Frequency [Max] | 650 MHz | 650 MHz |
| Frequency [Min] | 1 MHz | 1 MHz |
| Gain | 31.2 dB | 31 - 31.2 dB |
| Mounting Type | Surface Mount | Surface Mount, Chassis Mount |
| Package / Case | TO-270BA | TO-270AA, SOT-467C, TO-270BA |
| Power - Output | 150 W | 150 W |
| Supplier Device Package | TO-270-2G-1 | TO-270-2F-1, SOT467C, TO-270-2G-1 |
| Voltage - Rated | 200 V | 200 V |
| Voltage - Test | 65 V | 65 V |
ART150 Series
RF MOSFET LDMOS 65V TO270
| Part | Gain | Supplier Device Package | Package / Case | Current Rating (Amps) | Configuration | Voltage - Test | Mounting Type | Power - Output | Frequency [Min] | Frequency [Max] | Voltage - Rated | Current - Test |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Ampleon USA Inc. ART150PEXY | 31.2 dB | TO-270-2F-1 | TO-270AA | 1.4 µA | N-Channel | 65 V | Surface Mount | 150 W | 1 MHz | 650 MHz | 200 V | |
Ampleon USA Inc. ART150FEU | 31 dB | SOT467C | SOT-467C | 1.2 µA | 65 V | Chassis Mount | 150 W | 1 MHz | 650 MHz | 200 V | 20 mA | |
Ampleon USA Inc. ART150PEGXY | 31.2 dB | TO-270-2G-1 | TO-270BA | 1.4 µA | N-Channel | 65 V | Surface Mount | 150 W | 1 MHz | 650 MHz | 200 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 62.87 | |
| 10 | $ 49.20 | |||
| 25 | $ 45.70 | |||
| Digi-Reel® | 1 | $ 62.87 | ||
| 10 | $ 49.20 | |||
| 25 | $ 45.70 | |||
| Tape & Reel (TR) | 100 | $ 42.89 | ||
Description
General part information
ART150 Series
RF Mosfet 65 V 500 mA 1MHz ~ 650MHz 31.2dB 150W TO-270-2G-1
