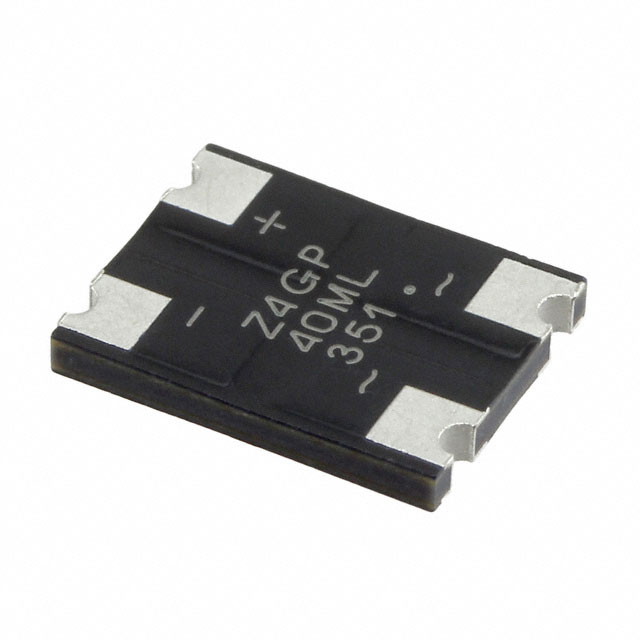

Z4DGP410L-HF
ActiveComchip Technology
BRIDGE RECT 1PHASE 1KV 4A Z4-D
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
Z4DGP410L-HF
ActiveComchip Technology
BRIDGE RECT 1PHASE 1KV 4A Z4-D
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | Z4DGP410L-HF |
|---|---|
| Current - Average Rectified (Io) | 4 A |
| Current - Reverse Leakage @ Vr | 5 µA |
| Diode Type | Single Phase |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 175 ░C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Z4-D |
| Supplier Device Package | Z4-D |
| Technology | Standard |
| Voltage - Forward (Vf) (Max) @ If | 950 mV |
| Voltage - Peak Reverse (Max) [Max] | 1000 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.05 | |
| 10 | $ 0.86 | |||
| 100 | $ 0.67 | |||
| 500 | $ 0.57 | |||
| 1000 | $ 0.56 | |||
| Digi-Reel® | 1 | $ 1.05 | ||
| 10 | $ 0.86 | |||
| 100 | $ 0.67 | |||
| 500 | $ 0.57 | |||
| 1000 | $ 0.56 | |||
| Tape & Reel (TR) | 3000 | $ 0.56 | ||
Z4DGP410 Series
BRIDGE RECT 1PHASE 1KV 4A Z4-D
| Part | Package / Case | Technology | Voltage - Forward (Vf) (Max) @ If | Mounting Type | Current - Average Rectified (Io) | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Peak Reverse (Max) [Max] | Diode Type | Current - Reverse Leakage @ Vr | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|
Comchip Technology Z4DGP410L-HF | Z4-D | Standard | 950 mV | Surface Mount | 4 A | -55 °C | 175 ░C | 1000 V | Single Phase | 5 µA | Z4-D |
Description
General part information
Z4DGP410 Series
Bridge Rectifier Single Phase Standard 1 kV Surface Mount Z4-D
Documents
Technical documentation and resources
