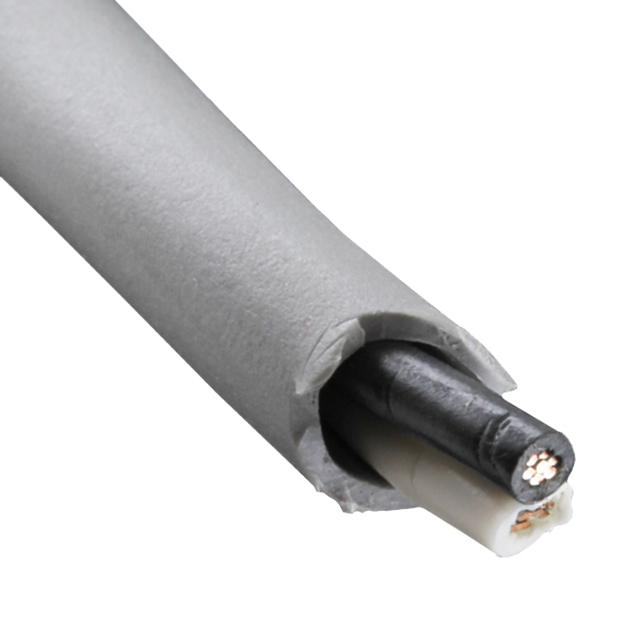

8461 060100 - 8461 060100

8461 060100

Active
Belden Inc.

MULTIPAIR CABLE, AUDIO CONTROL, UNSHIELDED, 1 PAIR, 18 AWG, 100 FT, 30.48 M

Deep-Dive with AI

DocumentsDatasheetCabling Solutions for Industrial Applications+1

Technical Specifications

Parameters and characteristics for this part

Specification8461 060100
Cable TypeSpeaker
Conductor InsulationPoly-Vinyl Chloride (PVC)
Conductor MaterialCopper, Tinned
Conductor Strand [custom]26 AWG
Conductor Strand [custom]7
Jacket (Insulation) Diameter [diameter]5.94 mm
Jacket (Insulation) Diameter [diameter]0.234 "
Jacket (Insulation) MaterialPoly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness0.686 mm
Jacket (Insulation) Thickness0.027 in
Jacket ColorChrome
Length [x]30.5 m
Length [x]100 ft
Number of Conductors2
Operating Temperature [Max]80 C
Operating Temperature [Min]-20 C
Wire Gauge18 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeySpool 100$ 1.90
200$ 1.81
300$ 1.75
500$ 1.69
700$ 1.65
1000$ 1.60
2500$ 1.50
5000$ 1.42
NewarkSpool of 100 1$ 211.01
5$ 202.85
10$ 195.86

Description

General part information

8461 Series

The 8461 060100 is a 100ft 1-pair unshielded high-conductivity copper Speaker Cable with 18AWG stranded (7 x 26) tinned copper conductors and chrome PVC jacket and insulation. Belden multi-conductor cable deliver low voltage analog data and signal transmission within enclosures from controllers and I/O's to devices such as temperature and pressure sensors, relays, valves, meters, thermocouples, solenoids, actuators, contactors, push buttons and alarms.
