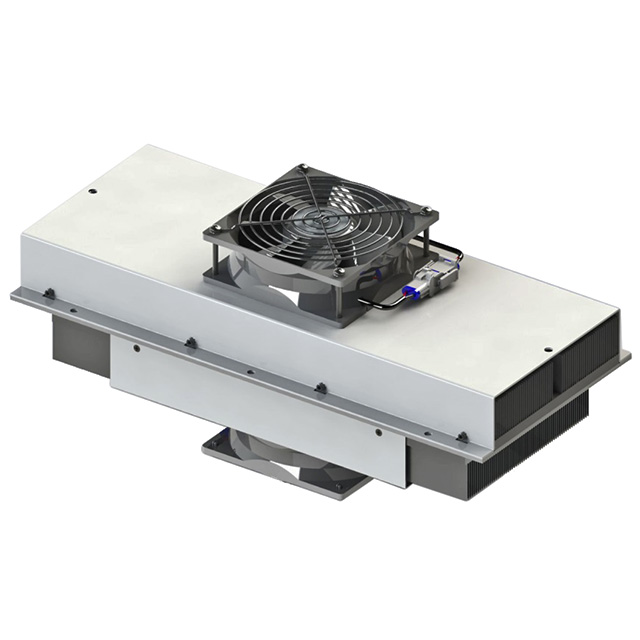

CTA400-0001-01
ActiveMarlow Industries, Inc.
THERMOELECT ASSY AIR-AIR 246W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CTA400-0001-01
ActiveMarlow Industries, Inc.
THERMOELECT ASSY AIR-AIR 246W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CTA400-0001-01 |
|---|---|
| Current | 14 A |
| Dimensions - Overall [x] | 400 mm |
| Dimensions - Overall [y] | 180 mm |
| Fan Location | Cold Side / Warm Side |
| Heat Transfer Type | Air to Air |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -10 °C |
| Power - Cooling | 246 W |
| Voltage | 24 V |
| Weight | 11.5 lbs |
| Weight | 5.2 kg |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 987.31 | |
| 6 | $ 929.61 | |||
| 10 | $ 801.38 | |||
Description
General part information
CTA400-0001-01
Air to Air Thermoelectric Assembly 246 W
Documents
Technical documentation and resources
