CNY17F-4S-TA1

Active

Diodes Inc

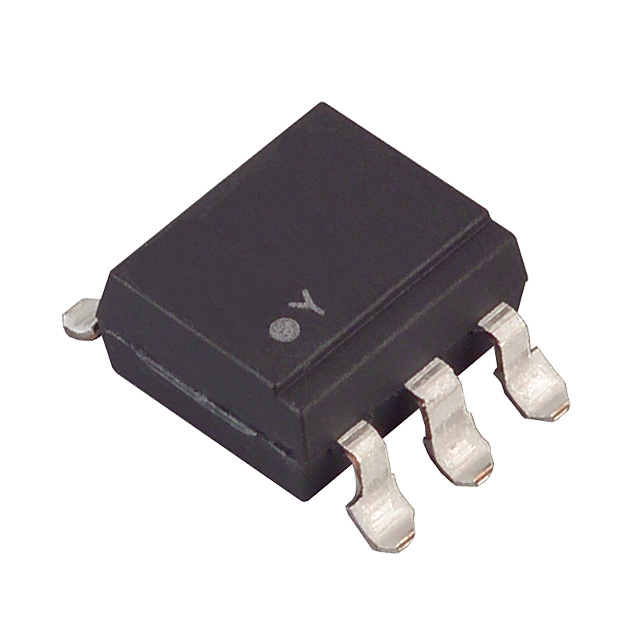

TRANSISTOR OUTPUT OPTOCOUPLER, 1-ELEMENT, 5000V ISOLATION, SURFACE MOUNT, DIP-6

Search across all available documentation for this part.

Active

Diodes Inc

TRANSISTOR OUTPUT OPTOCOUPLER, 1-ELEMENT, 5000V ISOLATION, SURFACE MOUNT, DIP-6

Technical Specifications

Parameters and characteristics for this part

Specification	CNY17F-4S-TA1

Current - DC Forward (If) (Max) [Max]	60 mA
Current - Output / Channel	150 mA
Current Transfer Ratio (Max)	320 %
Current Transfer Ratio (Min) [Min]	160 %
Input Type	DC
Mounting Type	Surface Mount
Number of Channels	1
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-55 °C
Output Type	1.81 mOhm
Package / Case	6-SMD, Gull Wing
Rise / Fall Time (Typ) [custom]	5 µs
Rise / Fall Time (Typ) [custom]	5 µs
Supplier Device Package	6-SMD
Vce Saturation (Max) [Max]	300 mV
Voltage - Forward (Vf) (Typ)	1.45 V
Voltage - Output (Max) [Max]	70 V

Part	Supplier Device Package	Voltage - Forward (Vf) (Typ)	Current - Output / Channel	Voltage - Output (Max) [Max]	Current Transfer Ratio (Max)	Vce Saturation (Max) [Max]	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Current Transfer Ratio (Min) [Min]	Current - DC Forward (If) (Max) [Max]	Number of Channels	Input Type	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Package / Case	Package / Case	Output Type
Diodes Inc CNY17-2S	6-SMD	1.45 V	150 mA	70 V	125 %	300 mV	5 µs	5 µs	63 %	60 mA	1	DC	Surface Mount	100 °C	-55 °C	6-SMD Gull Wing
Diodes Inc CNY17-2M	6-DIP	1.45 V	150 mA	70 V	125 %	300 mV	5 µs	5 µs	63 %	60 mA	1	DC	Through Hole	100 °C	-55 °C	6-DIP	10.16 mm	10.16 mm
Diodes Inc CNY17-1S-TA1	6-SMD	1.45 V	150 mA	70 V	80 %	300 mV	5 µs	5 µs	40 %	60 mA	1	DC	Surface Mount	100 °C	-55 °C	6-SMD Gull Wing
Diodes Inc CNY17F-4S-TA1	6-SMD	1.45 V	150 mA	70 V	320 %	300 mV	5 µs	5 µs	160 %	60 mA	1	DC	Surface Mount	100 °C	-55 °C	6-SMD Gull Wing			1.81 mOhm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Optoisolator Transistor Output 5000Vrms 1 Channel 6-SMD
