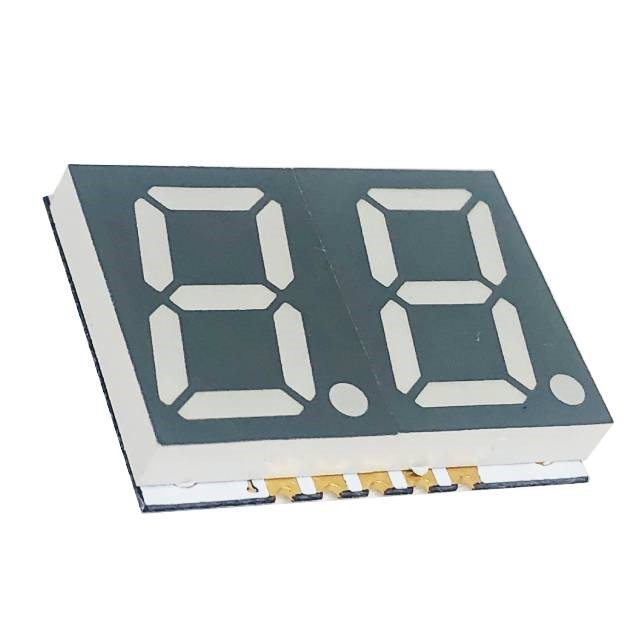

SMA562LE G/W

Active

American Opto Plus LED

DISP 14SEG 0.56 DUAL RED 10DIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SMA562LE G/W

Active

American Opto Plus LED

DISP 14SEG 0.56 DUAL RED 10DIP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SMA562LE G/W	SMA562 Series

Color	Red	Yellow, Red
Common Pin	Common Anode	Common Anode
Current - Test	20 mA	20 mA
Digit/Alpha Size	14.2 mm	14.2 mm
Digit/Alpha Size	0.56 in	0.56 in
Display Type	7-Segment	7-Segment
Millicandela Rating	25 mcd	25 mcd
Number of Characters	2	2
Package / Case	10-DIP	10-DIP
Power Dissipation (Max) [Max]	70 mW	70 mW
Size / Dimension [x]	0.748 in	0.748 in
Size / Dimension [x]	19 mm	19 mm
Size / Dimension [y]	0.984 in	0.984 in
Size / Dimension [y]	25 mm	25 mm
Size / Dimension [z]	0.151 in	0.151 in
Size / Dimension [z]	3.85 mm	3.85 mm
Voltage - Forward (Vf) (Typ)	2 V	2 V
Wavelength - Peak	632 nm	593 - 632 nm

SMA562 Series

DISP 14SEG 0.56DUAL YELLOW 10DIP

Part	Millicandela Rating	Number of Characters	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Current - Test	Common Pin	Wavelength - Peak	Digit/Alpha Size	Digit/Alpha Size	Color	Power Dissipation (Max) [Max]	Package / Case	Display Type	Voltage - Forward (Vf) (Typ)
American Opto Plus LED SMA562LY G/W	25 mcd	2	0.748 in	0.151 in	19 mm	0.984 in	3.85 mm	25 mm	20 mA	Common Anode	593 nm	14.2 mm	0.56 in	Yellow	70 mW	10-DIP	7-Segment	2 V
American Opto Plus LED SMA562LE G/W	25 mcd	2	0.748 in	0.151 in	19 mm	0.984 in	3.85 mm	25 mm	20 mA	Common Anode	632 nm	14.2 mm	0.56 in	Red	70 mW	10-DIP	7-Segment	2 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1	$ 3.68
		10	$ 2.76
		100	$ 2.30
		500	$ 1.61
		750	$ 1.47

Description

General part information

SMA562 Series

Display Modules - LED Character and Numeric Red 7-Segment 2 Character Common Anode 2V 20mA 0.748" H x 0.984" W x 0.151" D (19.00mm x 25.00mm x 3.85mm) 10-DIP

Documents

Technical documentation and resources
