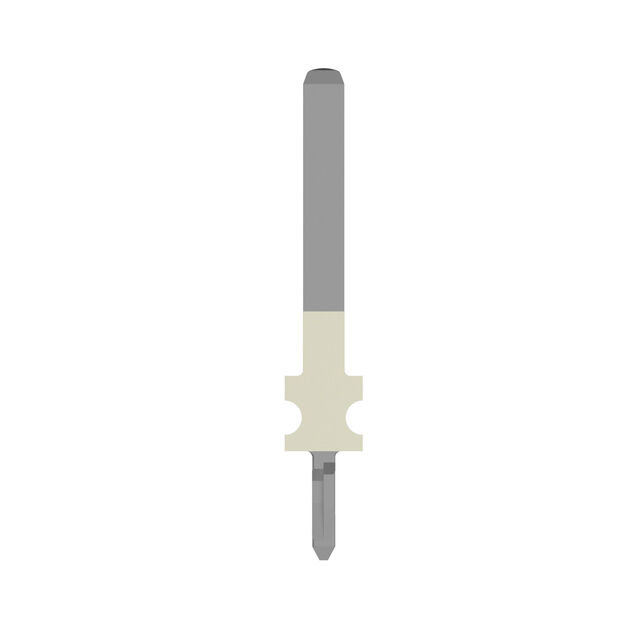

1394353-2

Active

TE Connectivity AMP Connectors

FLACHSTE A-P 1,5

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

FLACHSTE A-P 1,5

Technical Specifications

Parameters and characteristics for this part

Specification	1394353-2

Contact Finish	Tin
Contact Material	Copper Alloy
Insulation	Non-Insulated
Length - Overall [x]	0.406 in
Length - Overall [x]	10.3 mm
Mounting Hole Diameter [diameter]	0.045 in
Mounting Hole Diameter [diameter]	1.15 mm
Mounting Type	Through Hole
Pin Size - Below Flange	1.5 mm
Pin Size - Below Flange	0.059 in
Terminal Style	Pin Retention
Terminal Type	Single Post
Termination	Press-Fit

FLACHSTE A-P 1,5

Part	Terminal Style	Termination	Pin Size - Below Flange	Pin Size - Below Flange	Mounting Type	Insulation	Contact Material	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Contact Finish	Terminal Type	Length - Overall [x]	Length - Overall [x]
TE Connectivity AMP Connectors 1394353-2	Pin Retention	Press-Fit	1.5 mm	0.059 in	Through Hole	Non-Insulated	Copper Alloy	0.045 in	1.15 mm	Tin	Single Post	0.406 in	10.3 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Single Post Terminal Connector Through Hole Tin
