3240257

Active

Phoenix Contact

CBL CLAMP STR RLF DIN RAIL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3240257

Active

Phoenix Contact

CBL CLAMP STR RLF DIN RAIL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.88
		10	$ 7.67
		50	$ 7.16
		100	$ 6.59
		250	$ 6.09
		500	$ 5.80
		1000	$ 5.47

Description

General part information

WCC Series

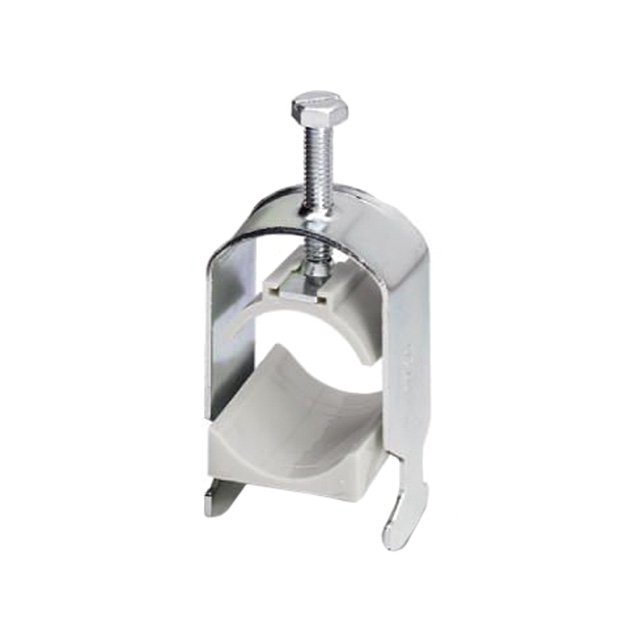

Cable Clamp, Strain Relief Silver DIN Rail 1.181" ~ 1.339" (30.00mm ~ 34.00mm)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	3240257	WCC Series

Color	Silver	Silver
Height [z]	3.819 in	3.268 - 6.063 "
Height [z]	97 mm	83 - 154 mm
Length	1.496 in	1.319 - 2.717 in
Length	38 mm	33.5 - 69 mm
Length	-	1.024 - 1.858 "
Length	-	26 - 47.2 mm
Material	Halogen Free, Steel, Plastic Trough	Halogen Free, Steel, Plastic Trough
Mounting Type	DIN Rail	DIN Rail
Opening Size	-	18 - 38 mm
Opening Size	-	0.709 - 2.205 in
Opening Size	-	22 - 42 mm
Opening Size	-	0.866 - 2.52 in
Opening Size	-	30 - 38 mm
Opening Size	-	0.866 - 1.339 in
Opening Size	-	1.024 - 1.496 in
Opening Size	-	22 - 34 mm
Opening Size	-	42 - 56 mm
Opening Size	-	56 - 64 mm
Opening Size	-	26 mm
Opening Size [Max] [custom]	34 mm	34 mm
Opening Size [Max] [custom]	1.339 in	1.339 in
Opening Size [Min] [custom]	1.181 in	1.181 in
Opening Size [Min] [custom]	30 mm	30 mm
Type	Clamp, Strain Relief	Clamp, Strain Relief
Type Attributes	Round, Saddle Clamp, Screw Locking	Round, Saddle Clamp, Screw Locking
Width [y]	0.945 in	0.945 in
Width [y]	24 mm	24 mm

WCC Series

CBL CLAMP STR RLF DIN RAIL

Part	Opening Size [Min] [z]	Opening Size [Min] [z]	Opening Size [Max] [z]	Opening Size [Max] [z]	Mounting Type	Width [y]	Width [y]	Length [x]	Length [x]	Height [z]	Height [z]	Type Attributes	Type	Color	Material	Length	Length	Opening Size [Max] [custom]	Opening Size [Min] [custom]	Opening Size [Max] [custom]	Opening Size [Min] [custom]	Opening Size [Min]	Opening Size [Max]	Opening Size [Max] [custom]	Opening Size [Min] [custom]	Opening Size [Min] [custom]	Opening Size [Max] [custom]	Opening Size [Max] [custom]
Phoenix Contact 3240259	38 mm	1.496 in	42 mm	1.654 in	DIN Rail	0.945 in	24 mm	1.858 "	47.2 mm	111 mm	4.37 "	Round, Saddle Clamp, Screw Locking	Clamp, Strain Relief	Silver	Halogen Free, Plastic Trough, Steel
Phoenix Contact 3240256					DIN Rail	0.945 in	24 mm			92 mm	3.622 in	Round, Saddle Clamp, Screw Locking	Clamp, Strain Relief	Silver	Halogen Free, Plastic Trough, Steel	33.5 mm	1.319 in	30 mm	1.024 in	1.181 in	26 mm
Phoenix Contact 3240258					DIN Rail	0.945 in	24 mm	1.673 in	42.49 mm	105 mm	4.134 in	Round, Saddle Clamp, Screw Locking	Clamp, Strain Relief	Silver	Halogen Free, Plastic Trough, Steel			38 mm	1.339 in	1.496 in	34 mm
Phoenix Contact 3240261		2.205 in		2.52 in	DIN Rail	0.945 in	24 mm			154 mm	6.063 in	Round, Saddle Clamp, Screw Locking	Clamp, Strain Relief	Silver	Halogen Free, Plastic Trough, Steel	69 mm	2.717 in					56 mm	64 mm
Phoenix Contact 3240257					DIN Rail	0.945 in	24 mm			97 mm	3.819 in	Round, Saddle Clamp, Screw Locking	Clamp, Strain Relief	Silver	Halogen Free, Plastic Trough, Steel	38 mm	1.496 in							34 mm	1.181 in	30 mm	1.339 in
Phoenix Contact 3240254	18 mm	0.709 in	22 mm	0.866 in	DIN Rail	0.945 in	24 mm	1.024 "	26 mm	83 mm	3.268 in	Round, Saddle Clamp, Screw Locking	Clamp, Strain Relief	Silver	Halogen Free, Plastic Trough, Steel
Phoenix Contact 3240260		1.654 in		2.205 in	DIN Rail	0.945 in	24 mm			145 mm	5.709 in	Round, Saddle Clamp, Screw Locking	Clamp, Strain Relief	Silver	Halogen Free, Plastic Trough, Steel							42 mm	56 mm
Phoenix Contact 3240255					DIN Rail	0.945 in	24 mm	1.181 in	30 mm	88 mm	3.465 in	Round, Saddle Clamp, Screw Locking	Clamp, Strain Relief	Silver	Halogen Free, Plastic Trough, Steel				0.866 in	1.024 in	22 mm							26 mm
