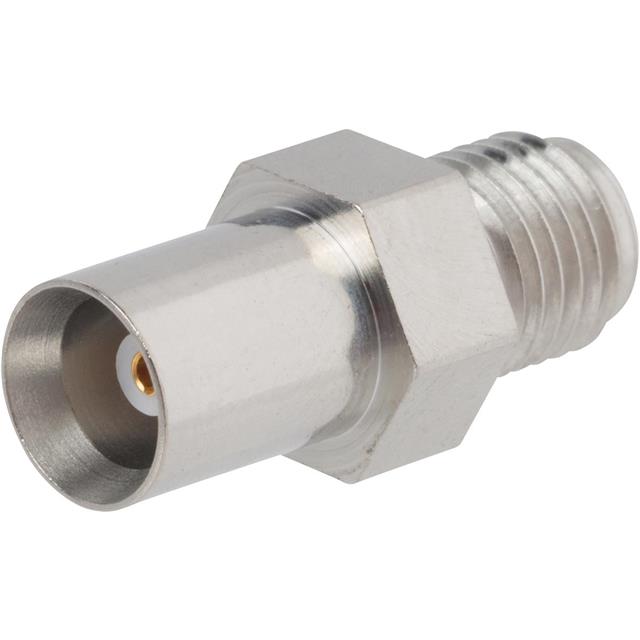

SF1122-6108

Active

Amphenol SV Microwave

BZ FEMALE TO SMA FEMALE ADAPTER /INDIVIDUAL - TRAY (PACK FILL QTY: 50)

Search across all available documentation for this part.

Active

Amphenol SV Microwave

BZ FEMALE TO SMA FEMALE ADAPTER /INDIVIDUAL - TRAY (PACK FILL QTY: 50)

Technical Specifications

Parameters and characteristics for this part

Specification	SF1122-6108

Adapter Series	SMA to BZ
Adapter Type	Jack to Jack
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Between Series
Convert From (Adapter End)	BZ Jack, Female Socket
Convert To (Adapter End)	SMA Jack, Female Socket
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded, Snap-On
Frequency - Max [Max]	2 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Style	Straight

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	25	$ 171.03
Newark	Each	25	$ 180.46
		50	$ 169.84

General part information

Adapter Coaxial Connector BZ Jack, Female Socket To SMA Jack, Female Socket 50 Ohms
