Description
General part information

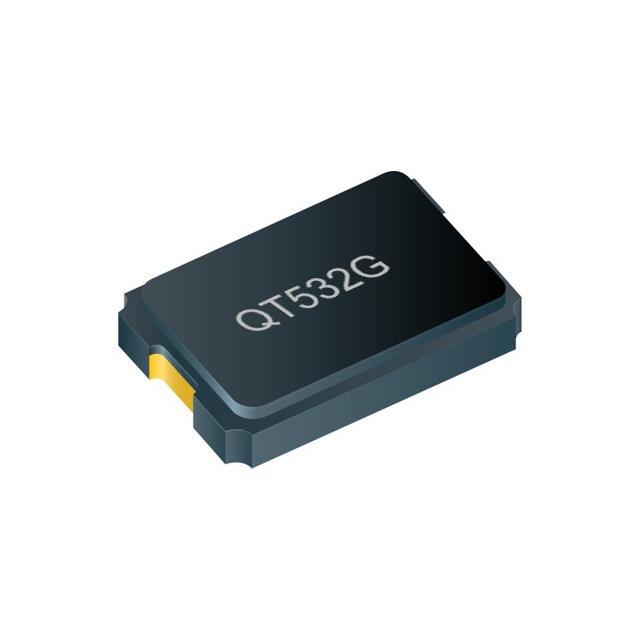

QT532G-18.432MBBK-T
18.432 MHz ±50ppm Crystal 20pF 50 Ohms 2-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | QT532G-18.432MBBK-T |
|---|---|
| ESR (Equivalent Series Resistance) | 50 Ohm |
| Frequency | 18.432 MHz |
| Frequency Stability | 50 ppm |
| Frequency Tolerance | 50 ppm |
| Height - Seated (Max) | 0.053 in |
| Load Capacitance | 20 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Package / Case | No Lead, 2-SMD |
| Package Length | 5 mm |
| Package Name | 2-SMD |
| Package Width | 3.2 mm |
| Size / Dimension Length | 0.197 in |
| Size / Dimension Width | 0.126 in |
| Type | MHz Crystal |
