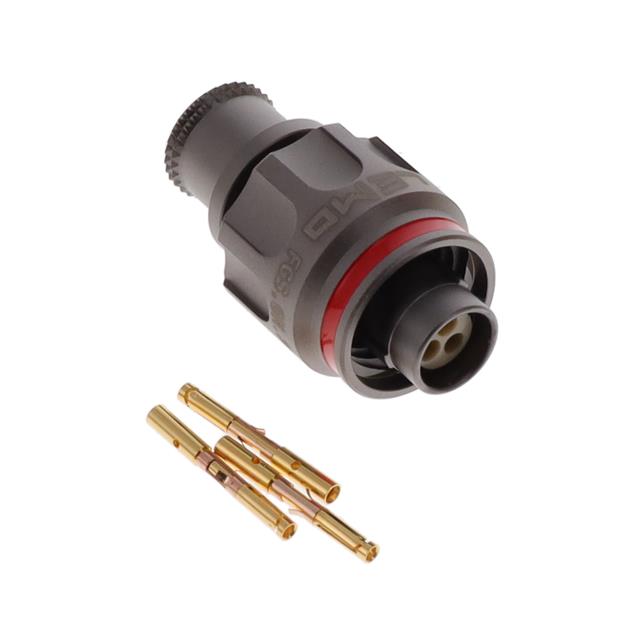

FGS.0M.303.XLMT
ActiveLEMO
CONN PLUG FMALE 3POS GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FGS.0M.303.XLMT
ActiveLEMO
CONN PLUG FMALE 3POS GOLD CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | FGS.0M.303.XLMT | FGS.0M Series |
|---|---|---|
| Applications | Military, Aerospace, Automotive, Aviation | Military, Aerospace, Automotive, Aviation |
| Cable Opening [diameter] | 8 mm | 8 mm |
| Cable Opening [diameter] | 0.315 in | 0.315 in |
| Color | Gray | Gray |
| Connector Type | Female Sockets, Plug | Female Sockets, Plug |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 59 Áin | 59 Áin |
| Contact Finish Thickness - Mating | 1.5 Ám | 1.5 Ám |
| Contact Material | Bronze | Bronze |
| Current Rating (Amps) | 8 A | 6.5 - 8 A |
| Features | Coupling Nut | Coupling Nut |
| Ingress Protection | IP68 - Dust Tight, Waterproof | IP68 - Dust Tight, Waterproof |
| Insert Material | Polyetheretherketone (PEEK) | Polyetheretherketone (PEEK) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Operating Temperature [Max] | 200 °C | 200 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | S | S |
| Primary Material | Metal | Metal |
| Shell Finish | Nickel | Nickel |
| Shell Material | Aluminum Alloy | Aluminum Alloy |
| Shell Size - Insert | 303 | 303 - 305 |
| Shielding | Shielded | Shielded |
| Termination | Crimp | Crimp |
FGS.0M Series
CONN PLUG FMALE 3POS GOLD CRIMP
| Part | Shell Size - Insert | Current Rating (Amps) | Color | Shell Finish | Contact Material | Contact Finish - Mating | Mounting Type | Cable Opening [diameter] | Cable Opening [diameter] | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Applications | Connector Type | Shielding | Insert Material | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Features | Primary Material | Orientation | Shell Material | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO FGS.0M.303.XLMT | 303 | 8 A | Gray | Nickel | Bronze | Gold | Free Hanging (In-Line) | 8 mm | 0.315 in | 59 Áin | 1.5 Ám | Aerospace, Automotive, Aviation, Military | Female Sockets, Plug | Shielded | Polyetheretherketone (PEEK) | Crimp | -55 °C | 200 °C | Coupling Nut | Metal | S | Aluminum Alloy | IP68 - Dust Tight, Waterproof |
LEMO FGS.0M.305.XLMT | 305 | 6.5 A | Gray | Nickel | Bronze | Gold | Free Hanging (In-Line) | 8 mm | 0.315 in | 59 Áin | 1.5 Ám | Aerospace, Automotive, Aviation, Military | Female Sockets, Plug | Shielded | Polyetheretherketone (PEEK) | Crimp | -55 °C | 200 °C | Coupling Nut | Metal | S | Aluminum Alloy | IP68 - Dust Tight, Waterproof |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 77.71 | |
| 10 | $ 71.31 | |||
| 25 | $ 68.57 | |||
| 50 | $ 66.28 | |||
| 100 | $ 62.63 | |||
Description
General part information
FGS.0M Series
3 Position Circular Connector Plug, Female Sockets Crimp
