Description
General part information

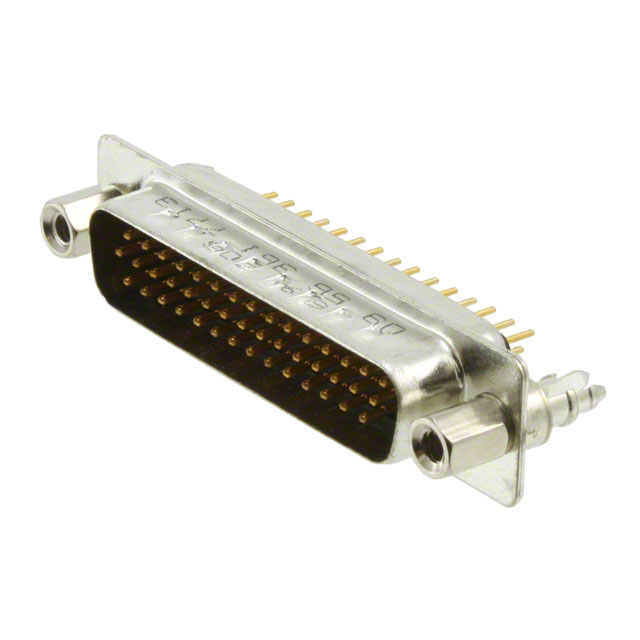

09563617713
44 Position D-Sub, High Density Plug, Male Pins Connector
Technical Specifications
Parameters and characteristics for this part
| Specification | 09563617713 |
|---|---|
| Color | Black |
| Connector Layout | DB, B, High Density |
| Connector Style | High Density, D-Sub |
| Connector Type | Male Pins, Plug |
| Contact Form | Stamped |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Current Rating | 2 A |
| Dielectric Material | Glass Filled, Polybutylene Terephthalate (PBT), Polyester |
| Features | Grounding Indents, Board Lock |
| Finish | Nickel Plated |
| Flange Feature | Female Screwlock (4-40), Mating Side |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 44 |
| Number of Rows | 3 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Shell Material | Steel |
| Shell Size | 3 |
| Termination | Solder |
