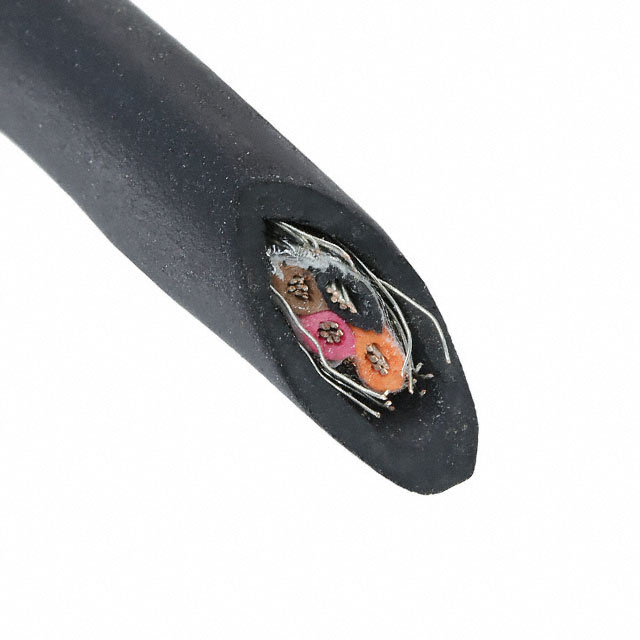

25104 BK005
ActiveALPHA WIRE
MULTICONDUCTOR CABLE, SHIELDED, 4 CONDUCTOR, 22 AWG, 0.35 MM², 100 FT, 30.5 M
Deep-Dive with AI
Search across all available documentation for this part.
25104 BK005
ActiveALPHA WIRE
MULTICONDUCTOR CABLE, SHIELDED, 4 CONDUCTOR, 22 AWG, 0.35 MM², 100 FT, 30.5 M
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 25104 BK005 | 25104 Series |
|---|---|---|
| Cable Type | Multi-Conductor | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Tinned | Copper, Tinned |
| Conductor Strand [custom] | 7 | 7 |
| Conductor Strand [custom] | 30 AWG | 30 AWG |
| Features | Rip Cord, Biological Compatibility, Drain Wire | Rip Cord, Biological Compatibility, Drain Wire |
| Jacket (Insulation) Diameter [diameter] | 5.51 mm | 5.51 mm |
| Jacket (Insulation) Diameter [diameter] | 0.217 in | 0.217 in |
| Jacket (Insulation) Material | Polyurethane (PU) | Polyurethane (PU) |
| Jacket Color | Black | Yellow, Black, Slate |
| Length | - | 1000 ft |
| Length | - | 304.8 m |
| Length [x] | 30.5 m | 30.5 m |
| Length [x] | 100 ft | 100 ft |
| Number of Conductors | 4 | 4 |
| Operating Temperature [Max] | 90 °C | 90 °C |
| Operating Temperature [Min] | -30 ░C | -30 ░C |
| Ratings | UL Style 20668, ISO 10993 | UL Style 20668, ISO 10993 |
| Shield Coverage | 70 %, 100 % | 70 - 100 % |
| Shield Material | Copper, Tinned, Suprashield® | Copper, Tinned, Suprashield® |
| Shield Type | Foil, Braid | Foil, Braid |
| Voltage | 300 V | 300 V |
| Wire Gauge | 22 AWG | 22 AWG |
25104 Series
CABLE 4COND 22AWG YLW SHLD 1000'
| Part | Features | Jacket (Insulation) Material | Wire Gauge | Shield Type | Jacket Color | Conductor Material | Shield Material | Length | Length | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Insulation | Cable Type | Ratings | Number of Conductors | Voltage | Shield Coverage | Conductor Strand [custom] | Conductor Strand [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ALPHA WIRE 25104 YL199 | Biological Compatibility, Drain Wire, Rip Cord | Polyurethane (PU) | 22 AWG | Braid, Foil | Yellow | Copper, Tinned | Copper, Tinned, Suprashield® | 1000 ft | 304.8 m | 5.51 mm | 0.217 in | Poly-Vinyl Chloride (PVC) | Multi-Conductor | ISO 10993, UL Style 20668 | 4 | 300 V | 70 %, 100 % | 7 | 30 AWG | -30 ░C | 90 °C | ||
ALPHA WIRE 25104 BK005 | Biological Compatibility, Drain Wire, Rip Cord | Polyurethane (PU) | 22 AWG | Braid, Foil | Black | Copper, Tinned | Copper, Tinned, Suprashield® | 5.51 mm | 0.217 in | Poly-Vinyl Chloride (PVC) | Multi-Conductor | ISO 10993, UL Style 20668 | 4 | 300 V | 70 %, 100 % | 7 | 30 AWG | -30 ░C | 90 °C | 30.5 m | 100 ft | ||
ALPHA WIRE 25104 SL199 | Biological Compatibility, Drain Wire, Rip Cord | Polyurethane (PU) | 22 AWG | Braid, Foil | Slate | Copper, Tinned | Copper, Tinned, Suprashield® | 1000 ft | 304.8 m | 5.51 mm | 0.217 in | Poly-Vinyl Chloride (PVC) | Multi-Conductor | ISO 10993, UL Style 20668 | 4 | 300 V | 70 %, 100 % | 7 | 30 AWG | -30 ░C | 90 °C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1 | $ 428.40 | |
Description
General part information
25104 Series
4 Conductor Multi-Conductor Cable Black 22 AWG Foil, Braid 100.0' (30.5m)
