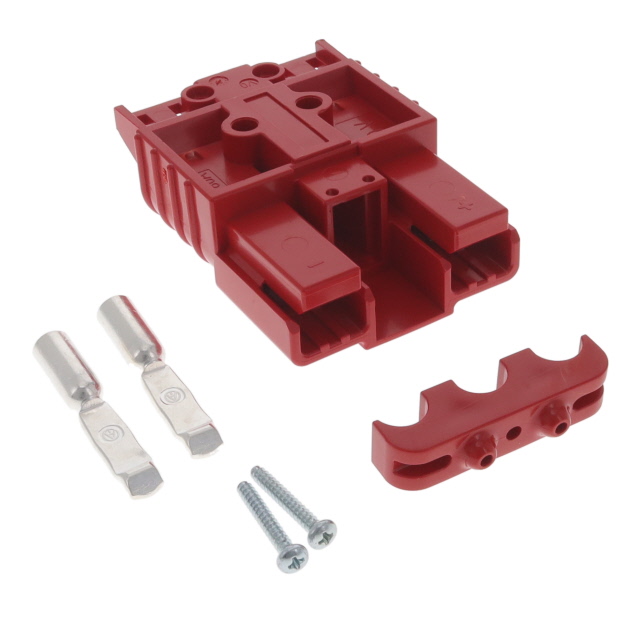

SBE80RED16MM
UnknownAnderson Power Products, Inc.
CONN PLUG 2POS IN-LINE CRIMP
SBE80RED16MM
UnknownAnderson Power Products, Inc.
CONN PLUG 2POS IN-LINE CRIMP
Description
General part information
SBE80RED16MM
2 Position Non-Gendered Connector Crimp Free Hanging (In-Line)
Technical Specifications
Parameters and characteristics for this part
| Specification | SBE80RED16MM |
|---|---|
| Color | Red |
| Connector Poles | 2 Poles |
| Connector Style | 2 Poles |
| Connector Type | Non-Gendered |
| Contact Finish | Silver |
| Contact Material | Copper Alloy |
| Current Rating | 80 A |
| Fastening Type | Spring Retention |
| Material - Insulation | PC, Polycarbonate |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -20 °C |
| Termination | Crimp |
| Voltage Rating | 600 V |
| Wire Gauge | 6 AWG |
