227B-12M01
ActiveATTEND Technology
B SIZE WATERPROOF CONNECTOR,PANE
227B-12M01
ActiveATTEND Technology
B SIZE WATERPROOF CONNECTOR,PANE
Description
General part information
227B-12M01

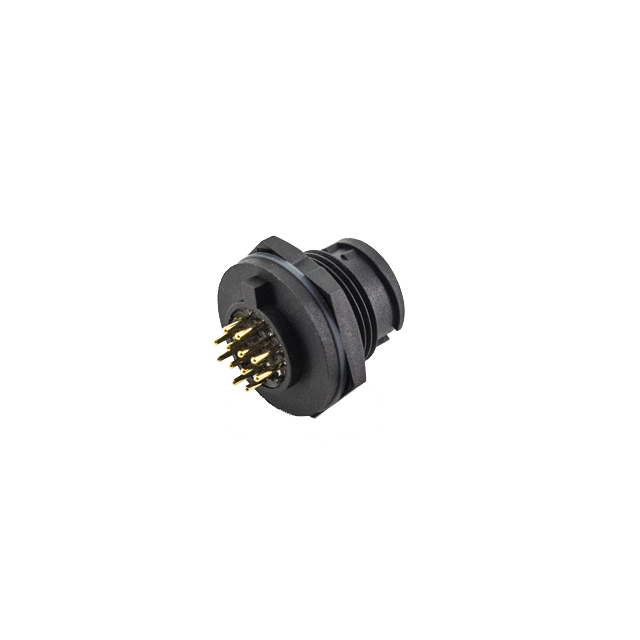

12 Position Circular Connector Receptacle, Male Pins Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | 227B-12M01 |
|---|---|
| Color | Black |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 1 µin |
| Contact Material | Brass |
| Current Rating | 2 A |
| Fastening Type | Bayonet Lock |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Insert Material | Polyamide, Nylon 6/6, PA66 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Bulkhead, Front Side Nut |
| Mounting Type | Panel Mount, Through Hole |
| Number of Positions | 12 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shell Material | Polyamide (PA66), Nylon 6/6 |
| Shell Size - Insert | B |
| Shielding | Unshielded |
| Termination | Solder |
