TL13-A1CBRG-S2TW
ActiveShenzhen Lakeview Electronics Co., Ltd
SWITCH TACTILE SPST-NO 0.05A 12V
TL13-A1CBRG-S2TW
ActiveShenzhen Lakeview Electronics Co., Ltd
SWITCH TACTILE SPST-NO 0.05A 12V
Description
General part information
TL13-A1CBRG-S2TW

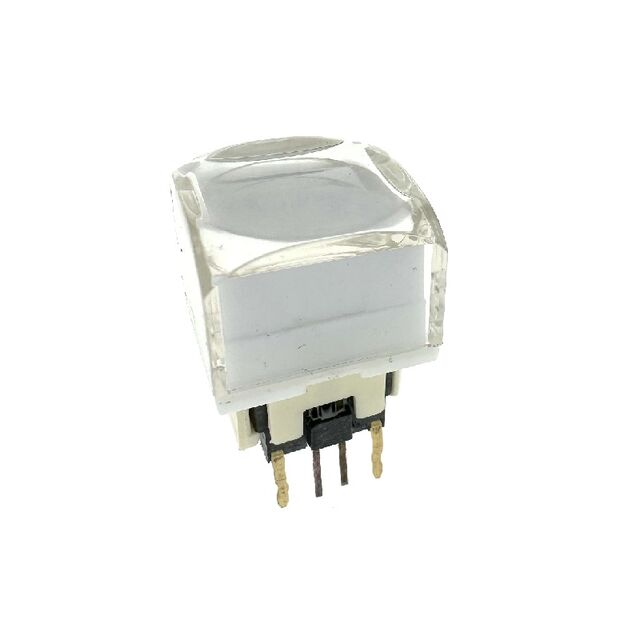

Tactile Switch SPST-NO Top Actuated Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | TL13-A1CBRG-S2TW |
|---|---|
| Actuator Material | Polyoxymethylene (Acetal) (POM) |
| Actuator Orientation | Top Actuated |
| Actuator Type | Square Button |
| Circuit | SPST-NO |
| Color | Blue, Red, Green |
| Contact Rating (Current) | 0.05 A |
| Illumination | Illuminated |
| Illumination Type | LED |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Mechanical Life (Cycles) | 1000000 Cycles |
| Mounting Type | Through Hole |
| Operating Force | 280 gf |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Outline Length | 12 mm |
| Outline Width | 12 mm |
| Switch Function | Off-Mom |
| Switch Travel | 0.85 mm |
| Termination Style | PC Pin |
