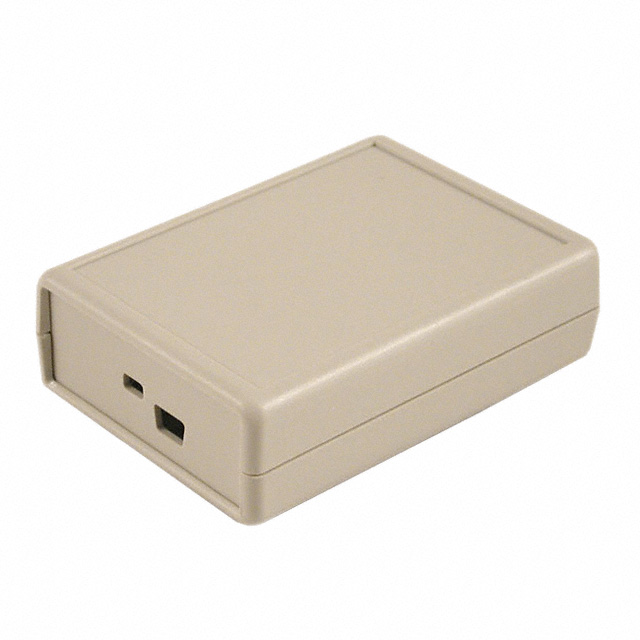

Specification	1593HAMFREE1GY

Area (L x W)	9.47 in²
Color	Gray
Container Type	Case
Design	Split Sides, End Panel(s), Hand Held
Features	PCB Supports
Height	1.102 in
Material	ABS, Plastic
Material Flammability Rating	UL94 HB
Note	Evaluation, Development board not included with enclosure
Platform	FRDM-KL02Z, FRDM-KL05Z
Size / Dimension Length	3.631 in
Size / Dimension Width	2.607 in
Weight	0.14 lb

1593 Series

...

Part	Height	Ratings	Container Type	Color	Material Flammability Rating	Material	Area (L x W)	Size / Dimension Width	Size / Dimension Length	Design	Thickness	Weight	Features
Hammond Manufacturing 1593XALBK	1.1 in	IP54	Box	Black	UL94 HB	ABS	14.4 in²	2.61 in	5.52 in	End Panel(s) Split Sides	0.1 in
Hammond Manufacturing 1593SALGY	0.83 in	IP54	Box	Gray	UL94 HB	ABS	9.48 in²	2.62 in	3.62 in	End Panel(s) Split Sides	0.1 in
Hammond Manufacturing 1593KBK	1.102 in		Box	Black	UL94 HB	ABS	6.9 in²	2.607 in	2.647 in	End Panel(s) Hand Held Split Sides		0.106 lb	PCB Supports
Hammond Manufacturing 1593DGY	1.016 in		Box	Gray	UL94 HB	ABS	6.31 in²	1.406 in	4.488 in	End Panel(s) Hand Held Split Sides		0.1 lb	PCB Supports
Hammond Manufacturing 1593KTBU	1.102 in		Box	Translucent - Blue	UL94 HB	ABS	6.9 in²	2.607 in	2.647 in	End Panel(s) Hand Held Split Sides		0.11 lb	PCB Supports
Hammond Manufacturing 1593PTBU	1.098 in		Box	Translucent - Blue	UL94 HB	ABS	9.48 in²	2.618 in	3.622 in	Cover End Panel Hand Held		0.13 lbs	Battery Door PCB Supports
Hammond Manufacturing 1593SGY	0.827 in		Box	Gray	UL94 HB	ABS	9.48 in²	2.618 in	3.622 in	Cover End Panel Hand Held		0.119 lb	Battery Door PCB Supports
Hammond Manufacturing 1593XBK	1.102 in		Box	Black	UL94 HB	ABS	14.4 in²	2.607 in	5.521 in	End Panel(s) Hand Held Split Sides			PCB Supports
Hammond Manufacturing 1593PALBK	1.1 in	IP54	Box	Black	UL94 HB	ABS	9.48 in²	2.62 in	3.62 in	End Panel(s) Split Sides	0.1 in
Hammond Manufacturing 1593TGY	0.827 in		Box	Gray	UL94 HB	ABS	11.5 in²	2.618 in	4.409 in	Cover End Panel Hand Held		0.131 lb	Battery Door PCB Supports
