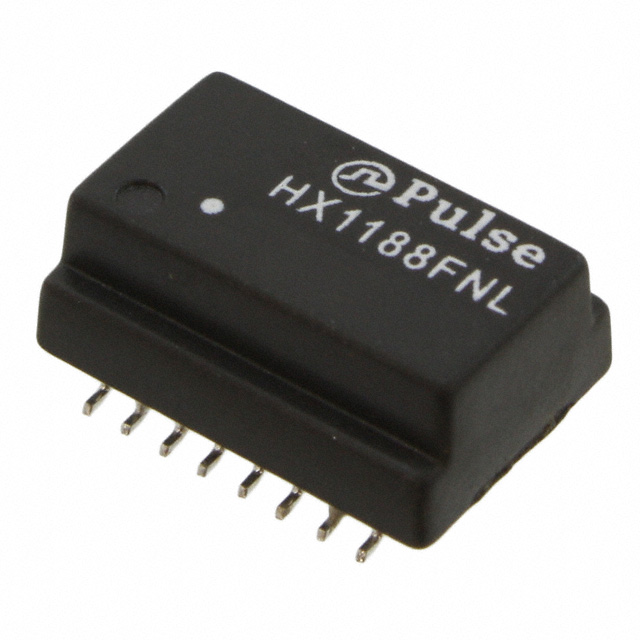

HX1188FNL
Isolation and Data Interface (Encapsulated) Pulse Transformer 1:1 Transmitter, 1:1 Receiver Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | HX1188FNL |
|---|---|
| Height - Seated (Max) | 0.241 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Size / Dimension Length | 0.5 in |
| Size / Dimension Width | 0.358 in |
| Transformer Type | Data Interface (Encapsulated), Isolation |
| Turns Ratio - Primary (Receiver) | 1 CT |
| Turns Ratio - Primary (Transmitter) | 1 CT |
| Turns Ratio - Secondary (Receiver) | 1 |
| Turns Ratio - Secondary (Transmitter) | 1 CT |
| Turns Ratio Mode | Transmitter, Receiver |
