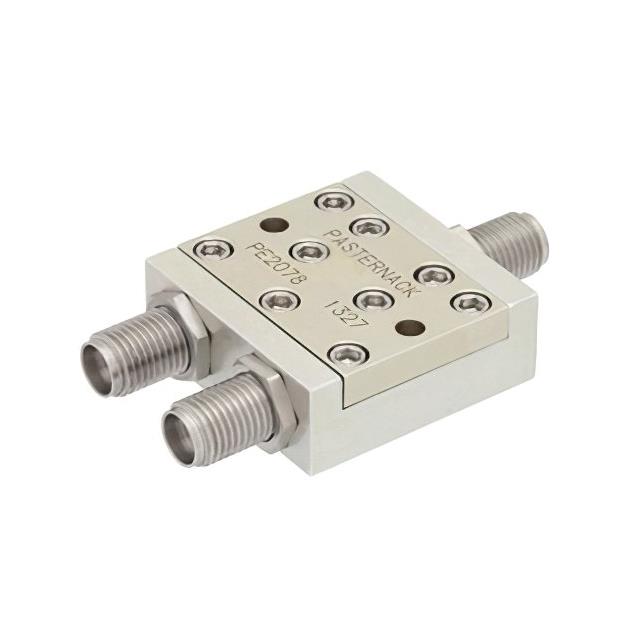

PE2078
ActivePasternack
2 WAY 2.92MM POWER DIVIDER FROM
PE2078
ActivePasternack
2 WAY 2.92MM POWER DIVIDER FROM
Description
General part information
PE2078
RF Power Divider 10 GHz ~ 40 GHz Isolation (Min) 15dB, 6° Imbalance (Max), 1.8 VSWR (Max) Module
Technical Specifications
Parameters and characteristics for this part
| Specification | PE2078 |
|---|---|
| Frequency (Max) | 40 GHz |
| Frequency (Min) | 10 GHz |
| Imbalance (Max) | 6 ° |
| Insertion Loss | 1.5 dB |
| Isolation (Min) | 15 dB |
| Package / Case | Module |
| Size / Dimension Height | 0.42 in |
| Size / Dimension Length | 1 in |
| Size / Dimension Width | 1 in |
| VSWR (Max) | 1.8 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
