SN74LVC1G3157DBVR-EV

Active

EVVO

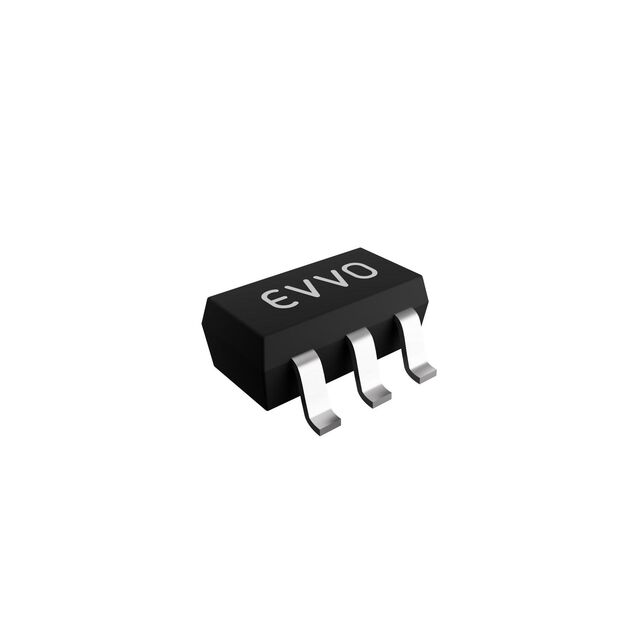

IC SWITCH SPDT X 1 15OHM SOT23-6

Search across all available documentation for this part.

Active

EVVO

IC SWITCH SPDT X 1 15OHM SOT23-6

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SN74LVC1G3157DBVR-EV	74LVC1G3157 Series

	-	-
-3db Bandwidth	350 MHz	350 MHz
Channel Capacitance (CS(off), CD(off)) [custom]	2.3 pF	2.3 pF
Channel Capacitance (CS(off), CD(off)) [custom]	2.3 pF	2.3 pF
Channel-to-Channel Matching (ΔRon)	150 mOhm	150 mOhm
Charge Injection	7 pC	7 pC
Crosstalk	-54 dB	-54 dB
Current - Leakage (IS(off)) (Max) [Max]	100 nA	100 nA
Mounting Type	Surface Mount	Surface Mount
Multiplexer/Demultiplexer Circuit	2:1	2:1
Number of Circuits	1	1
On-State Resistance (Max) [Max]	7 Ohm	7 Ohm
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	SOT-23-6	SOT-23-6
Supplier Device Package	SOT-23-6	SOT-23-6
Switch Circuit	SPDT - Open/Closed	SPDT - Open/Closed
Switch Time (Ton, Toff) (Max) [custom]	-	-
Switch Time (Ton, Toff) (Max) [Max] [custom]	3.5 ns	3.5 ns
Voltage - Supply, Single (V+) [Max]	5.5 V	5.5 V
Voltage - Supply, Single (V+) [Min]	1.65 V	1.65 V

IC SWITCH SPDT X 1 15OHM SOT23-6

Part	Mounting Type	Multiplexer/Demultiplexer Circuit	Crosstalk	Package / Case	Switch Time (Ton, Toff) (Max) [Max] [custom]	Switch Time (Ton, Toff) (Max) [custom]	Supplier Device Package	Current - Leakage (IS(off)) (Max) [Max]	Number of Circuits	Charge Injection	Operating Temperature [Max]	Operating Temperature [Min]	Switch Circuit	Voltage - Supply, Single (V+) [Min]	Voltage - Supply, Single (V+) [Max]	Channel-to-Channel Matching (ΔRon)	On-State Resistance (Max) [Max]	Channel Capacitance (CS(off), CD(off)) [custom]	Channel Capacitance (CS(off), CD(off)) [custom]	-3db Bandwidth
EVVO SN74LVC1G3157DBVR-EV	Surface Mount	2:1	-54 dB	SOT-23-6	3.5 ns	-	SOT-23-6	100 nA	1	7 pC	85 °C	-40 °C	SPDT - Open/Closed	1.65 V	5.5 V	150 mOhm	7 Ohm	2.3 pF	2.3 pF	350 MHz
EVVO SN74LVC1G3157DCKR-EV

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1 Circuit IC Switch 2:1 7Ohm (Typ) SOT-23-6
