395-043-524-403

Active

EDAC Inc.

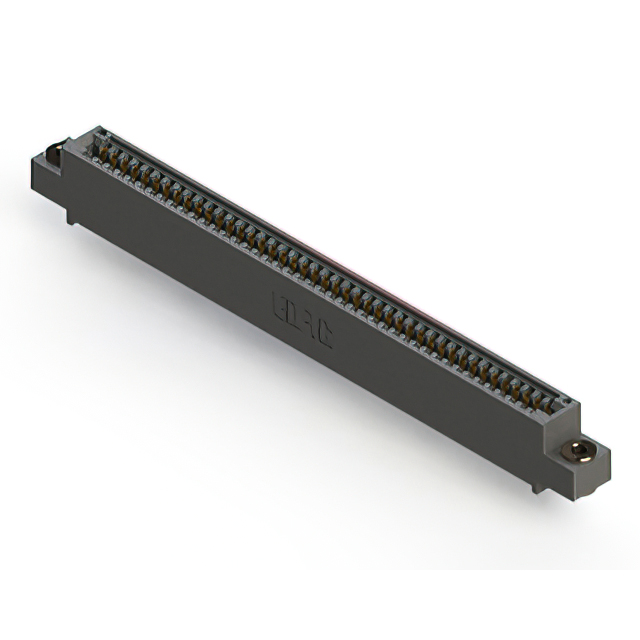

.100" (2.54MM) PITCH CARD EDGE CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

395-043-524-403

Active

EDAC Inc.

.100" (2.54MM) PITCH CARD EDGE CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	395-043-524-403

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Top Mount Opening, Floating Bobbin
Flange Feature [diameter]	2.95 mm
Flange Feature [diameter]	0.116 in
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	43
Number of Positions/Bay/Row [custom]	43
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Single
Termination	Solder
Termination Rows	1

395-043 Series

...

Part	Color	Material - Insulation	Termination Rows	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Read Out	Contact Material	Mounting Type	Contact Finish	Contact Type	Termination	Card Type	Number of Rows	Gender	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Pitch [x]	Pitch [x]	Number of Positions/Bay/Row [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Features	Flange Feature	Flange Feature
EDAC Inc. 395-043-523-404	Black	Polyester Thermoplastic	1	0.156 in	Top Mount Opening Unthreaded	3.96 mm	Single	Copper Alloy	Through Hole	Gold	Cantilever	Solder	Non Specified - Single Edge	1	Female	10 Áin	0.25 Ám	43	2.54 mm	0.1 in	43	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 395-043-558-407	Black	Polyester Thermoplastic	1		M3 Threaded Insert Top Mount Opening		Single	Copper Alloy	Through Hole Right Angle	Gold	Cantilever	Solder	Non Specified - Single Edge	1	Female	10 Áin	0.25 Ám	43	2.54 mm	0.1 in	43	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 395-043-523-408	Black	Polyester Thermoplastic	1		4-40 Threaded Insert Top Mount Opening		Single	Copper Alloy	Through Hole	Gold	Cantilever	Solder	Non Specified - Single Edge	1	Female	10 Áin	0.25 Ám	43	2.54 mm	0.1 in	43	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 395-043-523-403	Black	Polyester Thermoplastic	1	0.116 in	Floating Bobbin Top Mount Opening	2.95 mm	Single	Copper Alloy	Through Hole	Gold	Cantilever	Solder	Non Specified - Single Edge	1	Female	10 Áin	0.25 Ám	43	2.54 mm	0.1 in	43	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 395-043-524-403	Black	Polyester Thermoplastic	1	0.116 in	Floating Bobbin Top Mount Opening	2.95 mm	Single	Copper Alloy	Through Hole	Gold	Cantilever	Solder	Non Specified - Single Edge	1	Female	10 Áin	0.25 Ám	43	2.54 mm	0.1 in	43	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 395-043-523-178	Black	Polyester Thermoplastic	1		4-40 Flush Mount Threaded Insert Top Opening		Single	Copper Alloy	Through Hole	Gold	Cantilever	Solder	Non Specified - Single Edge	1	Female	10 Áin	0.25 Ám	43	2.54 mm	0.1 in	43	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Card Guides
EDAC Inc. 395-043-540-458	Black	Polyester Thermoplastic	1		4-40 Threaded Insert Top Mount Opening		Single	Copper Alloy	Through Hole	Gold	Cantilever	Wire Wrap	Non Specified - Single Edge	1	Female	10 Áin	0.25 Ám	43	2.54 mm	0.1 in	43	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Card Guides
EDAC Inc. 395-043-520-158	Black	Polyester Thermoplastic	1		4-40 Flush Mount Threaded Insert Top Opening		Single	Copper Alloy	Through Hole	Gold	Cantilever	Solder	Non Specified - Single Edge	1	Female	10 Áin	0.25 Ám	43	2.54 mm	0.1 in	43	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Card Guides
EDAC Inc. 395-043-524-612	Black	Polyester Thermoplastic	1		Side Mount Opening Unthreaded		Single	Copper Alloy	Through Hole	Gold	Cantilever	Solder	Non Specified - Single Edge	1	Female	10 Áin	0.25 Ám	43	2.54 mm	0.1 in	43	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in		3.25 mm	0.128 in
EDAC Inc. 395-043-542-412	Black	Polyester Thermoplastic	1		Side Mount Opening Unthreaded		Single	Copper Alloy	Through Hole	Gold	Cantilever	Wire Wrap	Non Specified - Single Edge	1	Female	10 Áin	0.25 Ám	43	2.54 mm	0.1 in	43	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in		3.25 mm	0.128 in
