Description
General part information

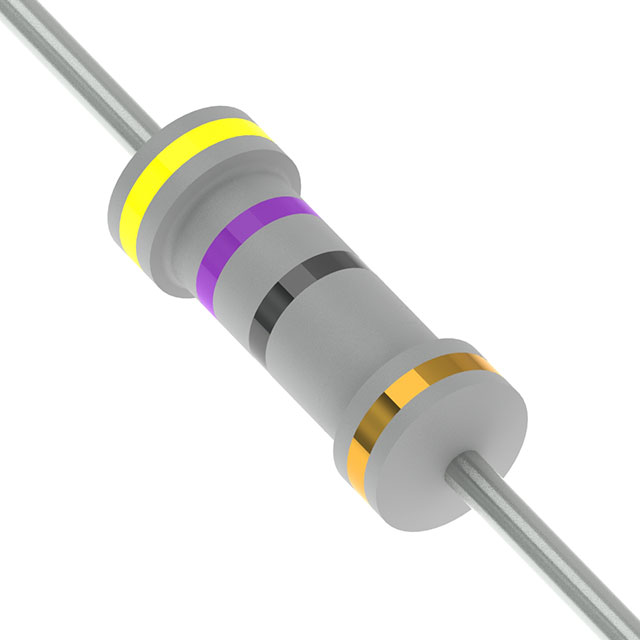

RSF-50JR-52-47R
47 Ohms ±5% 0.5W, 1/2W Through Hole Resistor Axial Flame Proof, Safety Metal Oxide Film
Technical Specifications
Parameters and characteristics for this part
| Specification | RSF-50JR-52-47R |
|---|---|
| Composition | Metal Oxide Film |
| Features | Safety, Flame Proof |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 235 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Package Name | Axial |
| Power (Watts) | 500 mW |
| Power (Watts) Options | 1/2W |
| Resistance | 47 Ohms |
| Size / Dimension Diameter | 0.13 in |
| Size / Dimension Length | 0.354 in |
| Temperature Coefficient | 300 ppm/°C |
| Tolerance | 5 % |
