CY7C149-45PC

Obsolete

Infineon Technologies

IC SRAM 4KBIT PARALLEL 18DIP

Search across all available documentation for this part.

Obsolete

Infineon Technologies

IC SRAM 4KBIT PARALLEL 18DIP

Technical Specifications

Parameters and characteristics for this part

Specification	CY7C149-45PC

Access Time	45 ns
Memory Format	SRAM
Memory Interface	Parallel
Memory Organization [custom]	1K
Memory Organization [custom]	4
Memory Size	4 Kbit
Memory Type	Volatile
Mounting Type	Through Hole
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C

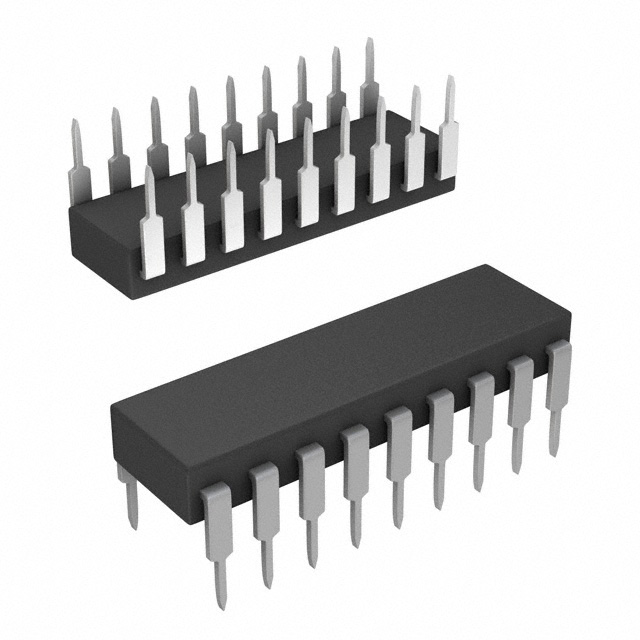

Package / Case	18-DIP
Package / Case [x]	0.3 in
Package / Case [x]	7.62 mm
Supplier Device Package	18-PDIP
Technology	SRAM - Asynchronous
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	4.5 V
Write Cycle Time - Word, Page [custom]	45 ns
Write Cycle Time - Word, Page [custom]	45 ns

Part	Mounting Type	Write Cycle Time - Word, Page [custom]	Write Cycle Time - Word, Page [custom]	Memory Organization [custom]	Memory Organization [custom]	Memory Format	Memory Interface	Access Time	Supplier Device Package	Technology	Memory Size	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Min]	Voltage - Supply [Max]	Package / Case	Package / Case [x]	Package / Case [x]	Memory Type
Infineon Technologies CY7C149-45PC	Through Hole	45 ns	45 ns	1K	4	SRAM	Parallel	45 ns	18-PDIP	SRAM - Asynchronous	4 Kbit	70 °C	0 °C	4.5 V	5.5 V	18-DIP	0.3 in	7.62 mm	Volatile

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

SRAM - Asynchronous Memory IC 4Kbit Parallel 45 ns 18-PDIP

Technical documentation and resources

No documents available
