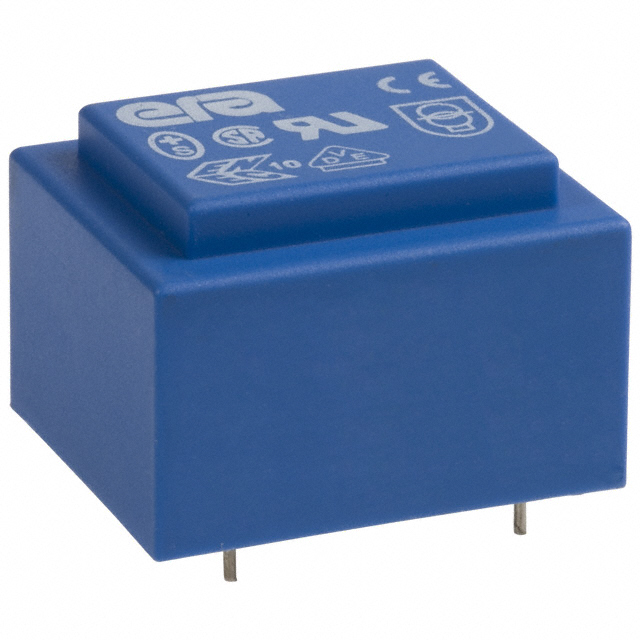

BV020-5481.0
ObsoletePulse Electronics
PWR XFMR LAMINATED 0.08VA TH
BV020-5481.0
ObsoletePulse Electronics
PWR XFMR LAMINATED 0.08VA TH
Description
General part information
BV020-5481.0
PWR XFMR LAMINATED 0.08VA TH
Technical Specifications
Parameters and characteristics for this part
| Specification | BV020-5481.0 |
|---|---|
| Center Tap | No |
| Current - Output (Max) | 8.88 mA |
| Height - Seated (Max) | 12 mm |
| Mounting Type | Through Hole |
| Power - Max | 0.08 VA |
| Primary Winding(s) | Single |
| Secondary Winding(s) | Single |
| Size / Dimension Length | 22 mm |
| Size / Dimension Width | 23 mm |
| Termination Style | PC Pin |
| Type | Laminated Core |
| Voltage - Primary | 230 V |
| Voltage - Secondary (Full Load) | 9 V |
| Weight | 0.077 lb |
