SAJ13XXRHLN88SNCPTQ

Active

TE Connectivity Raychem Cable Protection

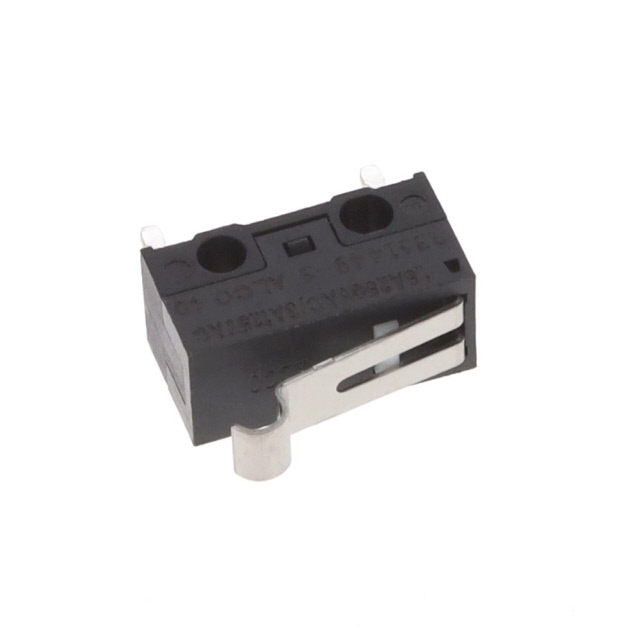

SWITCH SNAP ACT SPST-NC 3A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SAJ13XXRHLN88SNCPTQ

Active

TE Connectivity Raychem Cable Protection

SWITCH SNAP ACT SPST-NC 3A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SAJ13XXRHLN88SNCPTQ

Actuator Type	Simulated Roller, Lever
Circuit	SPST-NC
Current Rating (Amps)	3 A
Differential Travel	0.018 in
Differential Travel	0.45 mm
Electrical Life	6000 Cycles
Mechanical Life	500000 Cycles
Mounting Type	Through Hole
Operating Force	40 gf
Operating Position	10.2 mm
Operating Position	0.4 in
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-25 °C
Overtravel	0.02 in
Overtravel	0.5 mm
Pretravel	0.15 in
Pretravel	3.8 mm
Release Force	2 gf
Switch Function	On-Mom
Termination Style	PC Pin
Voltage Rating - AC	125 V

SAJ13X Series

Part	Electrical Life	Termination Style	Voltage Rating - AC	Actuator Type	Circuit	Switch Function	Operating Position	Operating Position	Release Force	Operating Temperature [Min]	Operating Temperature [Max]	Overtravel	Overtravel	Differential Travel	Differential Travel	Mechanical Life	Operating Force	Pretravel	Pretravel	Mounting Type	Current Rating (Amps)	Operating Position [custom]	Operating Position [custom]
TE Connectivity Raychem Cable Protection SAJ13XXBL0N88SNCPTQ	6000 Cycles	PC Pin	125 V	Lever Straight	SPST-NC	On-Mom	9.6 mm	0.378 in	2 gf	-25 °C	75 ░C	0.022 in	0.55 mm	0.5 mm	0.02 in	500000 Cycles	26 gf	0.087 in	2.2 mm	Through Hole	3 A
TE Connectivity Raychem Cable Protection SAJ13XXRHLN88SDTPTQ	6000 Cycles	PC Pin	125 V	Lever Simulated Roller	SPDT	On-Mom	10.2 mm	0.4 in	2 gf	-25 °C	75 ░C	0.02 in	0.5 mm	0.45 mm	0.018 in	500000 Cycles	40 gf	0.15 in	3.8 mm	Through Hole	3 A
TE Connectivity Raychem Cable Protection SAJ13XXHL0N88SNOPTQ	6000 Cycles	PC Pin	125 V	Lever Straight	SPST-NO	Off-Mom			2 gf	-25 °C	75 ░C	0.022 in	0.55 mm	0.5 mm	0.02 in	500000 Cycles	40 gf	0.12 in	3 mm	Through Hole	3 A	0.335 in	8.5 mm
TE Connectivity Raychem Cable Protection SAJ13XXRHLN88SNOPTQ	6000 Cycles	PC Pin	125 V	Lever Simulated Roller	SPST-NO	Off-Mom	10.2 mm	0.4 in	2 gf	-25 °C	75 ░C	0.02 in	0.5 mm	0.45 mm	0.018 in	500000 Cycles	40 gf	0.15 in	3.8 mm	Through Hole	3 A
TE Connectivity Raychem Cable Protection SAJ13XXPP0N88SDTPTQ	6000 Cycles	PC Pin	125 V	Round (Pin Plunger)	SPDT	On-Mom	6.9 mm	0.272 in		-25 °C	75 ░C	0.008 in	0.2 mm	0.2 mm	0.008 in	500000 Cycles	90 gf	0.02 in	0.5 mm	Through Hole	3 A
TE Connectivity Raychem Cable Protection SAJ13XXHL0N88SNCPTQ	6000 Cycles	PC Pin	125 V	Lever Straight	SPST-NC	On-Mom			2 gf	-25 °C	75 ░C	0.022 in	0.55 mm	0.5 mm	0.02 in	500000 Cycles	40 gf	0.12 in	3 mm	Through Hole	3 A	0.335 in	8.5 mm
TE Connectivity Raychem Cable Protection SAJ13XXPP0N88SNOPTQ	6000 Cycles	PC Pin	125 V	Round (Pin Plunger)	SPST-NO	Off-Mom	6.9 mm	0.272 in		-25 °C	75 ░C	0.008 in	0.2 mm	0.2 mm	0.008 in	500000 Cycles	90 gf	0.02 in	0.5 mm	Through Hole	3 A
TE Connectivity Raychem Cable Protection SAJ13XXRHLN88SNCPTQ	6000 Cycles	PC Pin	125 V	Lever Simulated Roller	SPST-NC	On-Mom	10.2 mm	0.4 in	2 gf	-25 °C	75 ░C	0.02 in	0.5 mm	0.45 mm	0.018 in	500000 Cycles	40 gf	0.15 in	3.8 mm	Through Hole	3 A
TE Connectivity Raychem Cable Protection SAJ13XXBL0N88SDTPTQ	6000 Cycles	PC Pin	125 V	Lever Straight	SPDT	On-Mom	9.6 mm	0.378 in	2 gf	-25 °C	75 ░C	0.022 in	0.55 mm	0.5 mm	0.02 in	500000 Cycles	26 gf	0.087 in	2.2 mm	Through Hole	3 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.65
		10	$ 0.61
		25	$ 0.59
		50	$ 0.57
		100	$ 0.54
		250	$ 0.43

Description

General part information

SAJ13X Series

Switch SPST-NC Through Hole
