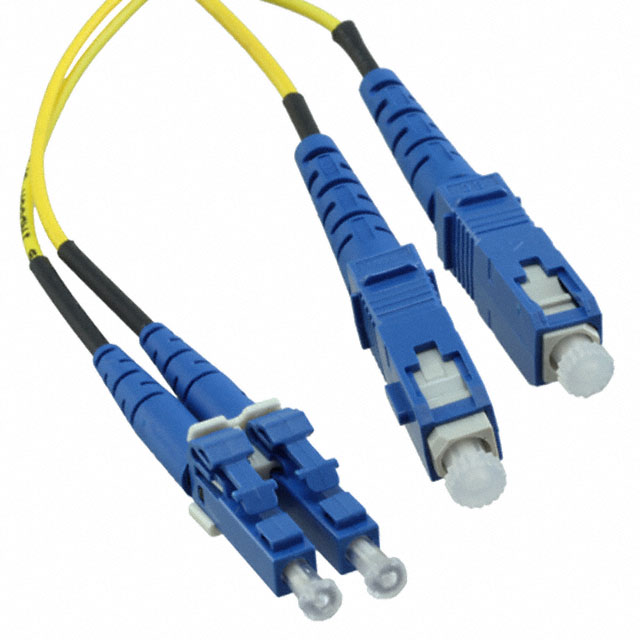

Specification	F92ERQ1SNSNM009

1st Connector	LC Duplex
2nd Connector	SC Duplex
Bend Radius	16 mm
Cable Diameter	0.06 "
Cable Type	Twin Zip
Color - Cable	Yellow
Color - Connectors	Blue
Features	Zipcord, Riser
Fiber Cladding Diameter	125 µm
Fiber Core Diameter	9 µm
Insertion Loss	0.35 dB
Insertion Loss (Alt)	0.5 dB
Length - Overall	29.5 ft
Operating Temperature (Max)	60 °C
Operating Temperature (Min)	-10 °C
Ratings	OFNR
Return Loss	55 dB
Type	OS2, Duplex, Singlemode

F92ERQ Series

Part	Insertion Loss (Alt)	Insertion Loss	Bend Radius	Operating Temperature (Max)	Operating Temperature (Min)	Return Loss	Color - Connectors	Color - Cable	1st Connector	Length - Overall	Cable Type	Type	2nd Connector	Fiber Core Diameter	Fiber Cladding Diameter	Cable Diameter	Features	Ratings
Panduit Corp F92ERQ1Q1SNM039	0.5 dB	0.35 dB	16 mm	60 °C	-10 °C	55 dB	Blue	Yellow	LC Duplex	128 ft	Twin Zip	Duplex OS2 Singlemode	LC Duplex	9 µm	125 µm	0.06 "	Riser Zipcord	OFNR
Panduit Corp F92ERQ1SNSNM025	0.5 dB	0.35 dB	16 mm	60 °C	-10 °C	55 dB	Blue	Yellow	LC Duplex	82 ft	Twin Zip	Duplex OS2 Singlemode	SC Duplex	9 µm	125 µm	0.06 "	Riser Zipcord	OFNR
Panduit Corp F92ERQ1Q1SNF014	0.5 dB	0.35 dB	16 mm	60 °C	-10 °C	55 dB	Blue	Yellow	LC Duplex	14 ft	Twin Zip	Duplex OS2 Singlemode	LC Duplex	9 µm	125 µm	0.06 "	Riser Zipcord	OFNR
Panduit Corp F92ERQ1Q1SNM033	0.5 dB	0.35 dB	16 mm	60 °C	-10 °C	55 dB	Blue	Yellow	LC Duplex	108.3 ft	Twin Zip	Duplex OS2 Singlemode	LC Duplex	9 µm	125 µm	0.06 "	Riser Zipcord	OFNR
Panduit Corp F92ERQ1Q1SNM044	0.5 dB	0.35 dB	16 mm	60 °C	-10 °C	55 dB	Blue	Yellow	LC Duplex	144.3 ft	Twin Zip	Duplex OS2 Singlemode	LC Duplex	9 µm	125 µm	0.06 "	Riser Zipcord	OFNR
Panduit Corp F92ERQ1Q1SNF017	0.5 dB	0.35 dB	16 mm	60 °C	-10 °C	55 dB	Blue	Yellow	LC Duplex	17 ft	Twin Zip	Duplex OS2 Singlemode	LC Duplex	9 µm	125 µm	0.06 "	Riser Zipcord	OFNR
Panduit Corp F92ERQ1SNSNF013	0.5 dB	0.35 dB	16 mm	60 °C	-10 °C	55 dB	Blue	Yellow	LC Duplex	13.1 ft	Twin Zip	Duplex OS2 Singlemode	SC Duplex	9 µm	125 µm	0.06 "	Riser Zipcord	OFNR
Panduit Corp F92ERQ1Q1SNM3.5	0.5 dB	0.35 dB	16 mm	60 °C	-10 °C	55 dB	Blue	Yellow	LC Duplex	11.5 ft	Twin Zip	Duplex OS2 Singlemode	LC Duplex	9 µm	125 µm	0.06 "	Riser Zipcord	OFNR
Panduit Corp F92ERQ1Q1SNM016	0.5 dB	0.35 dB	16 mm	60 °C	-10 °C	55 dB	Blue	Yellow	LC Duplex	52.5 ft	Twin Zip	Duplex OS2 Singlemode	LC Duplex	9 µm	125 µm	0.06 "	Riser Zipcord	OFNR
Panduit Corp F92ERQ1Q1SNM4.5	0.5 dB	0.35 dB	16 mm	60 °C	-10 °C	55 dB	Blue	Yellow	LC Duplex	14.8 ft	Twin Zip	Duplex OS2 Singlemode	LC Duplex	9 µm	125 µm	0.06 "	Riser Zipcord	OFNR
