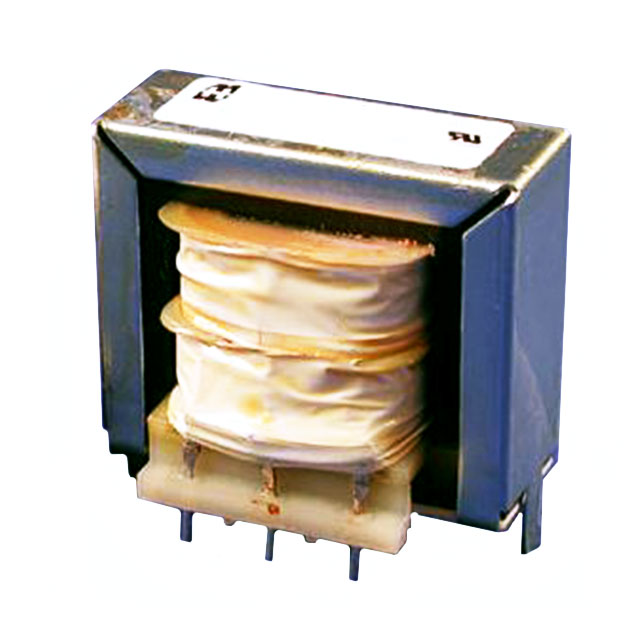

161E120
ActiveHammond Manufacturing
PWR XFMR LAMINATED 1.2VA TH
161E120
ActiveHammond Manufacturing
PWR XFMR LAMINATED 1.2VA TH
Description
General part information
161E120
PWR XFMR LAMINATED 1.2VA TH
Technical Specifications
Parameters and characteristics for this part
| Specification | 161E120 |
|---|---|
| Center Tap | No |
| Current - Output (Max) Parallel | 16 mA |
| Current - Output (Max) Series | 8 mA |
| Height - Seated (Max) | 30.99 mm |
| Mounting Type | Through Hole |
| Power - Max | 1.2 VA |
| Primary Winding(s) | Single |
| Secondary Winding(s) | Multiple Taps, Single |
| Size / Dimension Length | 35.05 mm |
| Size / Dimension Width | 30.23 mm |
| Termination Style | PC Pin |
| Type | Laminated Core |
| Voltage - Isolation | 2000 V |
| Voltage - Primary | 115 V |
| Voltage - Secondary (Full Load) (Parallel) | 60 V |
| Voltage - Secondary (Full Load) (Series) | 120 V |
| Weight | 0.25 lbs |
