109BM24HA2-1

Active

Sanyo Denki America Inc.

FAN BLOWER 97.2X33MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsNumber System Blower

109BM24HA2-1

Active

Sanyo Denki America Inc.

FAN BLOWER 97.2X33MM 24VDC WIRE

Deep-Dive with AI

DocumentsNumber System Blower

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	109BM24HA2-1	109BM24 Series

Air Flow	0.703 m³/min	0.574 - 0.703 m³/min
Air Flow	25.1 CFM	20.5 - 25.1 CFM
Approval Agency	CSA, TUV, UL	CSA, TUV, UL
Bearing Type	Ball	Ball
Current Rating (Amps)	0.26 A	0.26 - 150 mA
Fan Type	Blower	Blower
Features	-	Speed Sensor (Tach), Locked Rotor Protection, Locked Rotor Sensor
Lifetime @ Temp.	40000 Hrs	40000 Hrs
Material - Blade	Plastic	Plastic
Material - Frame	Plastic	Plastic
Noise	48.5 dB(A)	48.5 dB(A)
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-20 °C	-20 °C
Operating Temperature [Min]	-20 C	-20 C
Power (Watts)	6.24 W	3.6 - 6.24 W
RPM	3300 RPM	2700 - 3300 RPM
Size / Dimension	-	Rectangular/Rounded
Size / Dimension	-	94.5 mm
Size / Dimension [x]	97.2 mm	97.2 mm
Size / Dimension [y]	94.4 mm	94.4 mm
Static Pressure	0.819 in H2O	0.478 - 0.819 in H2O
Static Pressure	204 Pa	119.1 - 204 Pa
Termination	2 Wire Leads	3 Wire Leads, 2 Wire Leads
Voltage - Rated	24 VDC	24 VDC
Voltage Range [Max]	27.6 VDC	27.6 VDC
Voltage Range [Min]	12 VDC	12 VDC
Weight	0.386 lb	0.386 lb
Weight	175.09 g	175.09 g
Width [y]	33 mm	33 mm

109BM24 Series

FAN BLOWER 97.2X33MM 24VDC WIRE

Part	Termination	Material - Blade	Bearing Type	Voltage Range [Max]	Voltage Range [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Weight	Weight	Voltage - Rated	Width [y]	Features	Fan Type	Size / Dimension [y]	Size / Dimension [x]	Static Pressure	Static Pressure	Lifetime @ Temp.	Approval Agency	Air Flow	Air Flow	Current Rating (Amps)	Material - Frame	RPM	Size / Dimension	Size / Dimension [z]	Noise
Sanyo Denki America Inc. 109BM24MC2-1	3 Wire Leads	Plastic	Ball	27.6 VDC	12 VDC	-20 °C	70 °C	-20 C	70 °C	3.6 W	0.386 lb	175.09 g	24 VDC	33 mm	Locked Rotor Protection, Speed Sensor (Tach)	Blower	94.4 mm	97.2 mm	119.1 Pa	0.478 in H2O	40000 Hrs	CSA, TUV, UL	0.574 m³/min	20.5 CFM	150 mA	Plastic	2700 RPM
Sanyo Denki America Inc. 109BM24HD2-1	3 Wire Leads	Plastic	Ball	27.6 VDC	12 VDC	-20 °C	70 °C	-20 C	70 °C	6.24 W	0.386 lb	175.09 g	24 VDC	33 mm	Locked Rotor Sensor	Blower		97.2 mm	204 Pa	0.819 in H2O	40000 Hrs	CSA, TUV, UL	0.703 m³/min	25.1 CFM	0.26 A	Plastic	3300 RPM	Rectangular/Rounded	94.5 mm	48.5 dB(A)
Sanyo Denki America Inc. 109BM24HA2-1	2 Wire Leads	Plastic	Ball	27.6 VDC	12 VDC	-20 °C	70 °C	-20 C	70 °C	6.24 W	0.386 lb	175.09 g	24 VDC	33 mm		Blower	94.4 mm	97.2 mm	204 Pa	0.819 in H2O	40000 Hrs	CSA, TUV, UL	0.703 m³/min	25.1 CFM	0.26 A	Plastic	3300 RPM			48.5 dB(A)
Sanyo Denki America Inc. 109BM24MA2-1	2 Wire Leads	Plastic	Ball	27.6 VDC	12 VDC	-20 °C	70 °C	-20 C	70 °C	3.6 W	0.386 lb	175.09 g	24 VDC	33 mm		Blower		97.2 mm	119.1 Pa	0.478 in H2O	40000 Hrs	CSA, TUV, UL	0.574 m³/min	20.5 CFM	150 mA	Plastic	2700 RPM	Rectangular/Rounded	94.5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	64	$ 21.03

Description

General part information

109BM24 Series

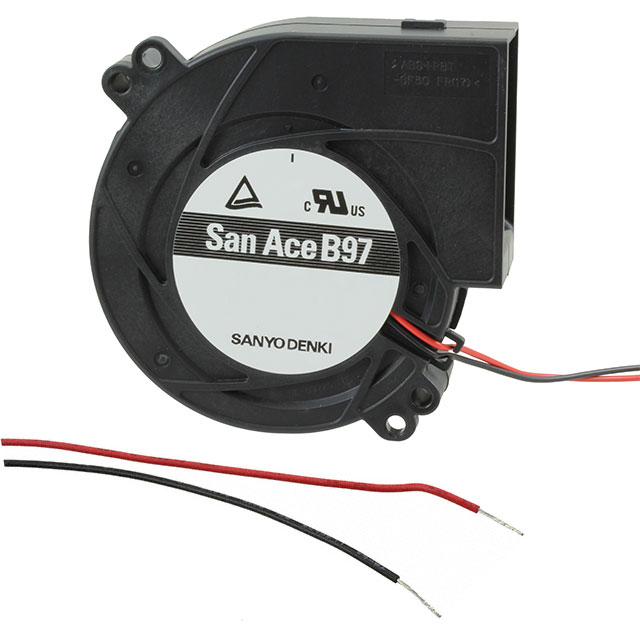

Fan Blower 24VDC Rectangular/Rounded - 97.2mm L x 94.4mm H Ball 25.1 CFM (0.703m³/min) 2 Wire Leads
