CIRBP24LBN
ActiveTE Connectivity AMP Connectors

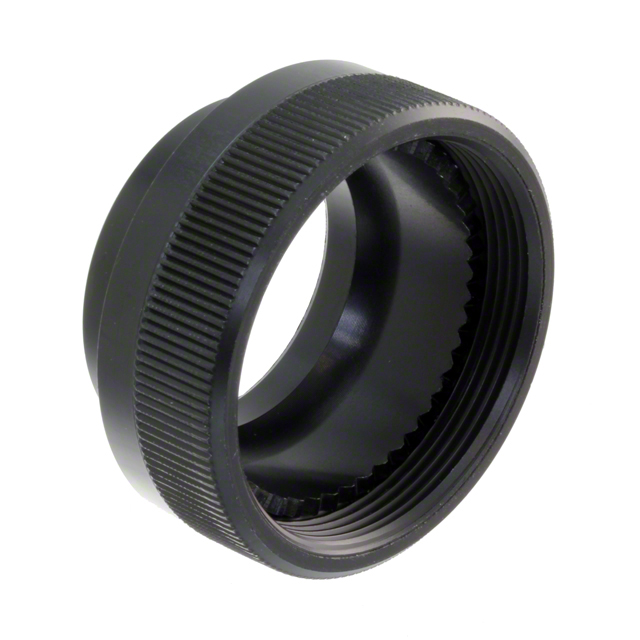

CONN BACKNUT 24 BLACK
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CIRBP24LBN
ActiveTE Connectivity AMP Connectors
CONN BACKNUT 24 BLACK
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | CIRBP24LBN | CIRBP24 Series |
|---|---|---|
| Accessory Type | Backnut | Backnut |
| Cable Exit | - | 180 ° |
| Color | Black | Black |
| Diameter - Outside | - | 1.614 " |
| Diameter - Outside | - | 41 mm |
| For Use With/Related Products | CIRP Series Circular Connectors | CIRP Series Circular Connectors |
| Ingress Protection | - | IP67 - Dust Tight, Waterproof |
| Material | Aluminum Alloy | Aluminum Alloy |
| Plating | - | Zinc Cobalt |
| Shell Size - Insert | 24 | 24 |
| Shielding | - | Unshielded |
| Thread Size | - | 1 3/8-18 UNEF-2B |
| Type | - | Backshell, Heat Shrink Adapter |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 100 | $ 17.65 | |
CIRBP24 Series
CONN BACKNUT 24 BLACK
| Part | Material | Shell Size - Insert | Color | Accessory Type | For Use With/Related Products | Thread Size | Cable Exit | Plating | Ingress Protection | Shielding | Diameter - Outside [diameter] | Diameter - Outside [diameter] | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors CIRBP24LBN | Aluminum Alloy | 24 | Black | Backnut | CIRP Series Circular Connectors | ||||||||
TE Connectivity AMP Connectors CIRBP24SCHSA | Aluminum Alloy | 24 | CIRP Series Circular Connectors | 1 3/8-18 UNEF-2B | 180 ° | Zinc Cobalt | IP67 - Dust Tight, Waterproof | Unshielded | 1.614 " | 41 mm | Backshell, Heat Shrink Adapter |
Description
General part information
CIRBP24 Series
Connector Backnut 24 Black
