18280-3PG-318
ActiveConxall/Switchcraft

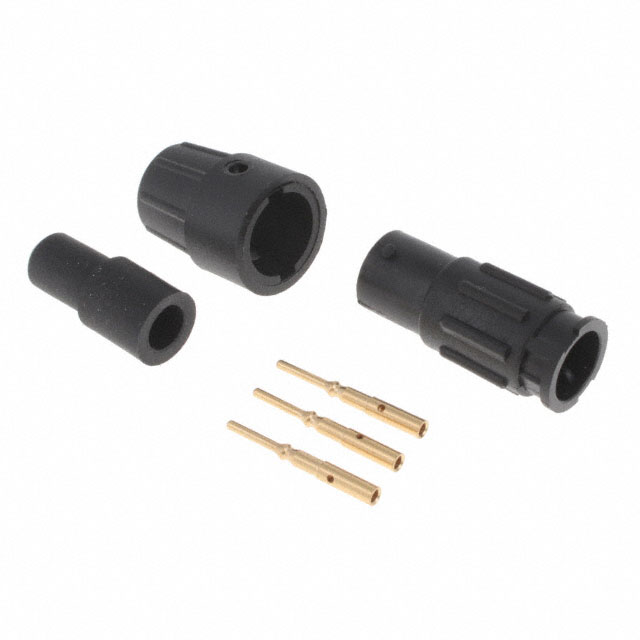

CONN RCPT MALE 3POS GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
18280-3PG-318
ActiveConxall/Switchcraft
CONN RCPT MALE 3POS GOLD CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 18280-3PG-318 | 18280-3P Series |
|---|---|---|
| Applications | Medical, Data, Instrumentation, Industrial | Medical, Data, Instrumentation, Industrial |
| Backshell Material, Plating | Thermoplastic | Thermoplastic |
| Cable Opening | - | 0.15 - 0.17 in |
| Cable Opening | - | 3.81 - 4.32 mm |
| Cable Opening [Max] [custom] | 0.2 in | 0.2 in |
| Cable Opening [Max] [custom] | 5.08 mm | 5.08 mm |
| Cable Opening [Min] [custom] | 4.57 mm | 4.57 mm |
| Cable Opening [Min] [custom] | 0.18 in | 0.18 in |
| Color | Black | Black |
| Connector Type | Receptacle, Male Pins | Receptacle, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 7.5 A | 7.5 A |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Backshell | Backshell |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 HB | UL94 HB |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Plastic | Plastic |
| Shielding | Unshielded | Unshielded |
| Termination | Crimp | Crimp |
| Voltage Rating | 600 VAC | 600 VAC |
18280-3P Series
CONN RCPT MALE 3POS GOLD CRIMP
| Part | Mounting Type | Backshell Material, Plating | Cable Opening [Min] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Max] [custom] | Shielding | Material Flammability Rating | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish - Mating | Current Rating (Amps) | Applications | Features | Contact Material | Ingress Protection | Connector Type | Orientation | Fastening Type | Voltage Rating | Color | Termination | Primary Material | Cable Opening [custom] | Cable Opening [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Conxall/Switchcraft 18280-3PG-318 | Free Hanging (In-Line) | Thermoplastic | 4.57 mm | 0.18 in | 0.2 in | 5.08 mm | Unshielded | UL94 HB | 85 °C | -40 °C | Gold | 7.5 A | Data, Industrial, Instrumentation, Medical | Backshell | Copper Alloy | IP67 - Dust Tight, Waterproof | Male Pins, Receptacle | Keyed | Bayonet Lock | 600 VAC | Black | Crimp | Plastic | ||
Conxall/Switchcraft 18280-3PG-315 | Free Hanging (In-Line) | Thermoplastic | Unshielded | UL94 HB | 85 °C | -40 °C | Gold | 7.5 A | Data, Industrial, Instrumentation, Medical | Backshell | Copper Alloy | IP67 - Dust Tight, Waterproof | Male Pins, Receptacle | Keyed | Bayonet Lock | 600 VAC | Black | Crimp | Plastic | 0.15 in, 0.17 in | 3.81 mm, 4.32 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.58 | |
| 10 | $ 4.14 | |||
| 25 | $ 3.92 | |||
| 50 | $ 3.82 | |||
| 100 | $ 3.63 | |||
| 300 | $ 3.36 | |||
Description
General part information
18280-3P Series
3 Position Circular Connector Receptacle, Male Pins Crimp
