796690-4
ActiveTE Connectivity AMP Connectors

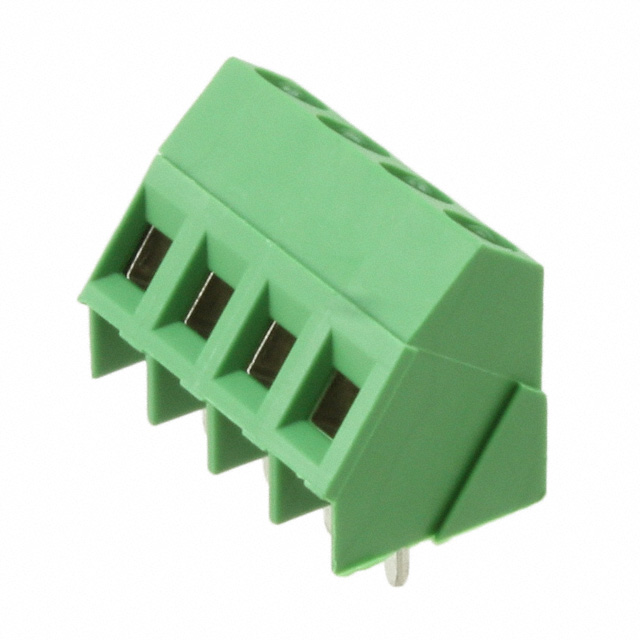

TERM BLOCK 4POS 35DEG 5MM PCB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
796690-4
ActiveTE Connectivity AMP Connectors
TERM BLOCK 4POS 35DEG 5MM PCB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 796690-4 | 796690 Series |
|---|---|---|
| Clamp Material - Plating | Brass - Tin Plated | Brass - Tin Plated |
| Color | Green | Green |
| Contact Material - Plating [custom] | Brass - Tin Plated | Brass - Tin Plated |
| Current | 17.5 A | 17.5 A |
| Features | Interlocking (Side) | Interlocking (Side) |
| Mating Orientation | 35 ° | 35 ° |
| Mating Orientation | 145 ° | 145 ° |
| Mounting Type | Through Hole | Through Hole |
| Number of Levels | 1 | 1 |
| Pitch [x] | 5 mm | 5 mm |
| Pitch [x] | 0.197 in | 0.197 in |
| Positions Per Level | 4 | 4 - 12 |
| Screw Material - Plating | Brass - Nickel Plated | Brass - Nickel Plated |
| Screw Thread | M3 | M3 |
| Torque - Screw | 0.79 Nm | 0.79 Nm |
| Torque - Screw | 7 Lb-In | 7 Lb-In |
| Voltage | 300 V | 300 V |
| Wire Gauge [Max] | 30 AWG | 30 AWG |
| Wire Gauge [Min] | 12 AWG | 12 AWG |
| Wire Termination | Screw - Rising Cage Clamp | Screw - Rising Cage Clamp |
796690 Series
TERM BLOCK 4POS 35DEG 5MM PCB
| Part | Color | Screw Material - Plating | Current | Wire Gauge [Max] | Wire Gauge [Min] | Clamp Material - Plating | Contact Material - Plating [custom] | Torque - Screw | Torque - Screw | Wire Termination | Mounting Type | Voltage | Pitch [x] | Pitch [x] | Screw Thread | Number of Levels | Mating Orientation | Mating Orientation | Features | Positions Per Level |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 796690-4 | Green | Brass - Nickel Plated | 17.5 A | 30 AWG | 12 AWG | Brass - Tin Plated | Brass - Tin Plated | 0.79 Nm | 7 Lb-In | Screw - Rising Cage Clamp | Through Hole | 300 V | 5 mm | 0.197 in | M3 | 1 | 35 ° | 145 ° | Interlocking (Side) | 4 |
TE Connectivity AMP Connectors 1-796690-2 | Green | Brass - Nickel Plated | 17.5 A | 30 AWG | 12 AWG | Brass - Tin Plated | Brass - Tin Plated | 0.79 Nm | 7 Lb-In | Screw - Rising Cage Clamp | Through Hole | 300 V | 5 mm | 0.197 in | M3 | 1 | 35 ° | 145 ° | Interlocking (Side) | 12 |
TE Connectivity AMP Connectors 1-796690-1 | Green | Brass - Nickel Plated | 17.5 A | 30 AWG | 12 AWG | Brass - Tin Plated | Brass - Tin Plated | 0.79 Nm | 7 Lb-In | Screw - Rising Cage Clamp | Through Hole | 300 V | 5 mm | 0.197 in | M3 | 1 | 35 ° | 145 ° | Interlocking (Side) | 11 |
TE Connectivity AMP Connectors 796690-7 | Green | Brass - Nickel Plated | 17.5 A | 30 AWG | 12 AWG | Brass - Tin Plated | Brass - Tin Plated | 0.79 Nm | 7 Lb-In | Screw - Rising Cage Clamp | Through Hole | 300 V | 5 mm | 0.197 in | M3 | 1 | 35 ° | 145 ° | Interlocking (Side) | 7 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.73 | |
| 10 | $ 2.43 | |||
| 25 | $ 2.42 | |||
| 50 | $ 2.40 | |||
| 150 | $ 2.20 | |||
| 300 | $ 2.19 | |||
| 600 | $ 1.99 | |||
| 1050 | $ 1.78 | |||
| 5100 | $ 1.57 | |||
Description
General part information
796690 Series
4 Position Wire to Board Terminal Block 35° (145°) Angle with Board 0.197" (5.00mm) Through Hole
