H161407HC-WHT
ActiveIntegra Enclosures
ENCLOSURE PLAS 16.79"L X 14.79"W
H161407HC-WHT
ActiveIntegra Enclosures
ENCLOSURE PLAS 16.79"L X 14.79"W
Description
General part information
H161407HC-WHT

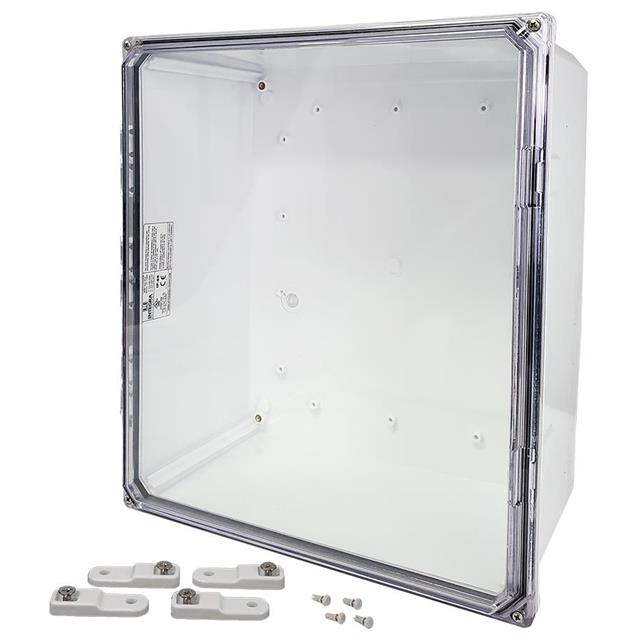

Enclosure Plastic, Polycarbonate (PC) White, Clear Cover/Door Hinged Door, Lid 16.790" L x 14.790" W (426.47mm x 375.67mm) X 8.380" (212.85mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | H161407HC-WHT |
|---|---|
| Area (L x W) | 224 in², 245 in² |
| Color | White, Clear Cover/Door |
| Container Type | Enclosure |
| Design | Hinged Door, Cover Included, Lid |
| Features | Mounting Brackets |
| Height | 7 in, 8.38 in |
| Material | Polycarbonate (PC), Plastic |
| Material Flammability Rating | UL94 V-0, UL94 5VA |
| Material Flammability Rating - Code | UL94 |
| Material Flammability Rating - Level | 5 |
| Ratings | 1, 3S, NEMA, 2, 3R, 3, 4X, 4, 12, 13, IP66, IP68, NEMA 4X, NEMA 6P |
| Size / Dimension Length | 16 in, 16.79 in |
| Size / Dimension Width | 14 in, 14.79 in |
| Thickness | 0.2 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
