AFY800480A0-5.0INTH-R-HDMI
ActiveOrient Display
5" IPS TFT WITH HDMI INTERFACE R
AFY800480A0-5.0INTH-R-HDMI
ActiveOrient Display
5" IPS TFT WITH HDMI INTERFACE R
Description
General part information
AFY800480A0-5.0INTH-R-HDMI

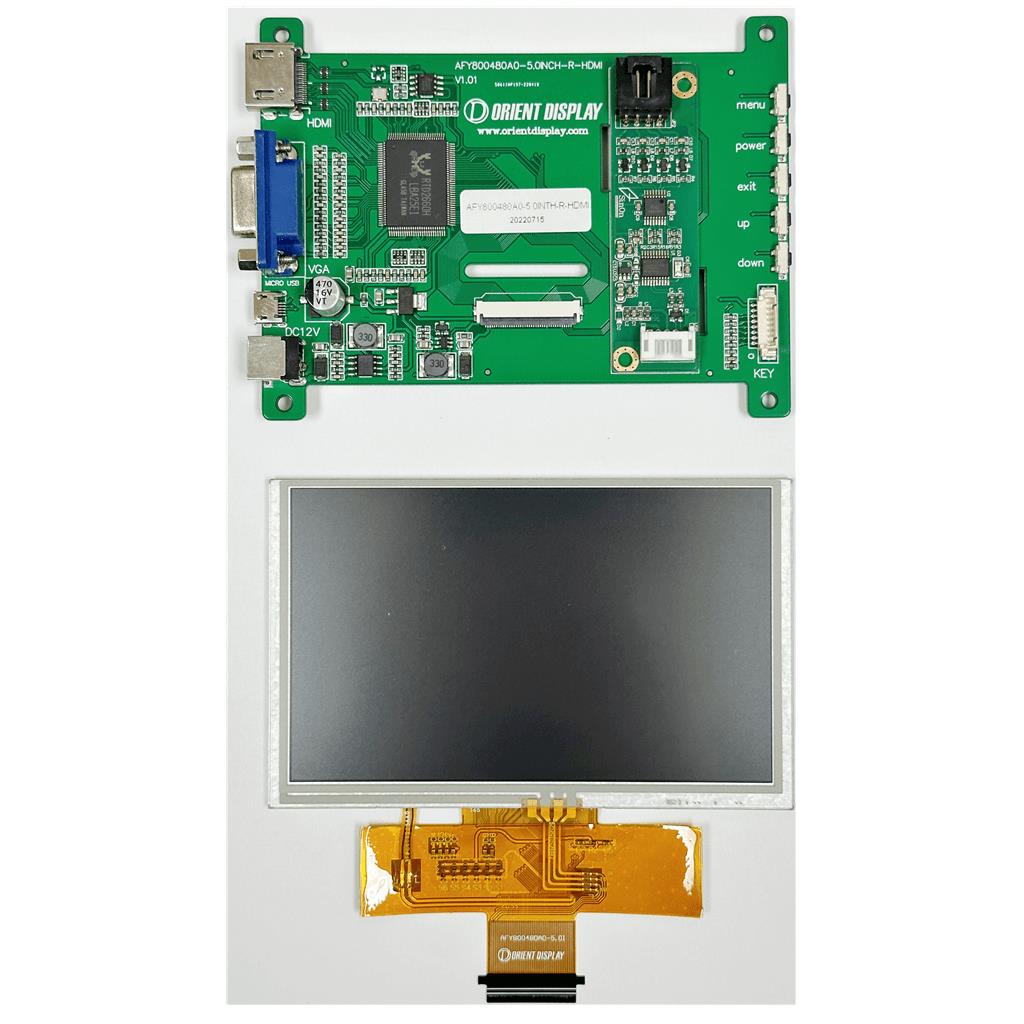

Resistive Graphic LCD Display Module Transmissive Black TFT - Color HDMI, USB 5" (127.00mm) 800 x 480 (WVGA)
Technical Specifications
Parameters and characteristics for this part
| Specification | AFY800480A0-5.0INTH-R-HDMI |
|---|---|
| Backlight Color | White |
| Backlight Type | LED |
| Controller Type | RTD2660H |
| Diagonal Screen Size | 5 in |
| Display Mode | Transmissive |
| Display Type | TFT - Color |
| Dot Pixels (Horizontal) | 800 pixels |
| Dot Pixels (Resolution) | WVGA |
| Dot Pixels (Vertical) | 480 pixels |
| Graphics Color | Black |
| Interface | USB, HDMI |
| Touchscreen | Resistive |
| Viewing Area Height | 67.6 mm |
| Viewing Area Width | 110.8 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
