Description
General part information
3PS-187 Series

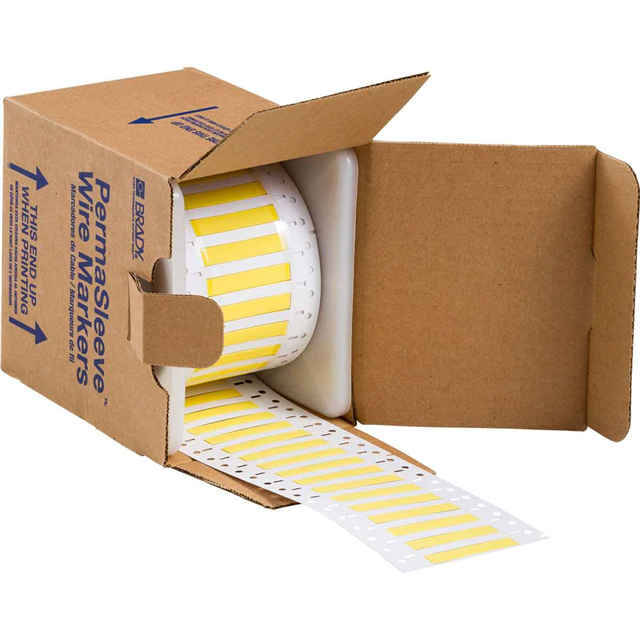

Yellow Heat Shrinkable Label 0.50" W x 0.19" Dia (12.7mm x 4.8mm); Cable O.D. 0.06" ~ 0.15" (1.6mm ~ 3.8mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | 3PS-187-2-YL-S-4 |
|---|---|
| Cable O.D. (Max) | 0.15 " |
| Cable O.D. (Min) | 0.06 " |
| Color | Yellow |
| Label Size (Diameter) | 0.19 " |
| Label Type | Heat Shrinkable |
| Label Width | 0.5 " |
| Material | Polyolefin (PO) |
| Operating Temperature (Max) | 135 °C |
| Operating Temperature (Min) | -55 °C |
