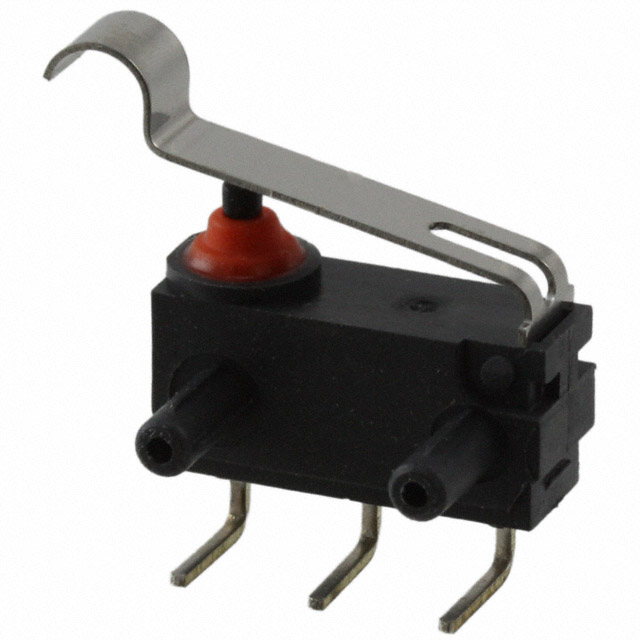

ZD30S60H02-Z

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACT SPDT 0.1A 125V

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACT SPDT 0.1A 125V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ZD30S60H02-Z	ZD30 Series

Actuator Type	Simulated Roller, Lever	Simulated Roller, Lever, Round (Pin Plunger)
Circuit	SPDT	SPDT
Current Rating (Amps)	3 A, 100 mA	3 - 100 A
Differential Travel	0.027 "	0.012 - 0.027 "
Differential Travel	0.7 mm	0.3 - 0.7 mm
Electrical Life	6000 Cycles	6000 Cycles
Features	Support Posts	Support Posts
Ingress Protection	IP00	IP00, IP67 - Dust Tight, Waterproof
Mechanical Life	500000 Cycles	500000 Cycles
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle, Chassis Mount
Operating Force	180 gf	130 - 180 gf
Operating Position	-	3.05 mm
Operating Position	-	0.12 in
Operating Temperature [Max]	120 °C	120 °C
Operating Temperature [Min]	-40 °C	-40 °C
Overtravel	1.5 mm	0.76 - 1.5 mm
Overtravel	0.06 "	0.03 - 0.06 "
Pretravel	0.15 in	0.03 - 0.15 in
Pretravel	3.8 mm	0.8 - 3.8 mm
Release Force	20 gf	13 - 20 gf
Switch Function	On-Mom	On-Mom
Termination Style	PC Pin	PC Pin, Wire Leads
Voltage Rating - AC	125 V	125 V
Voltage Rating - DC	12 V	12 V

SWITCH SNAP ACT SPDT 0.1A 125V

Part	Features	Mechanical Life	Operating Force	Switch Function	Current Rating (Amps)	Voltage Rating - AC	Pretravel	Pretravel	Voltage Rating - DC	Termination Style	Mounting Type	Release Force	Differential Travel	Differential Travel	Electrical Life	Circuit	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Overtravel	Overtravel	Actuator Type	Operating Position	Operating Position
Honeywell Sensing and Productivity Solutions ZD30S60H02-Z	Support Posts	500000 Cycles	180 gf	On-Mom	3 A, 100 mA	125 V	0.15 in	3.8 mm	12 V	PC Pin	Through Hole, Right Angle	20 gf	0.027 "	0.7 mm	6000 Cycles	SPDT	-40 °C	120 °C	IP00	1.5 mm	0.06 "	Lever, Simulated Roller
Honeywell Sensing and Productivity Solutions ZD30SA01EA		500000 Cycles	130 gf	On-Mom	3 A	125 V	0.03 in	0.8 mm	12 V	Wire Leads	Chassis Mount	13 gf	0.012 "	0.3 mm	6000 Cycles	SPDT	-40 °C	120 °C	IP67 - Dust Tight, Waterproof	0.76 mm	0.03 in	Round (Pin Plunger)	3.05 mm	0.12 in
