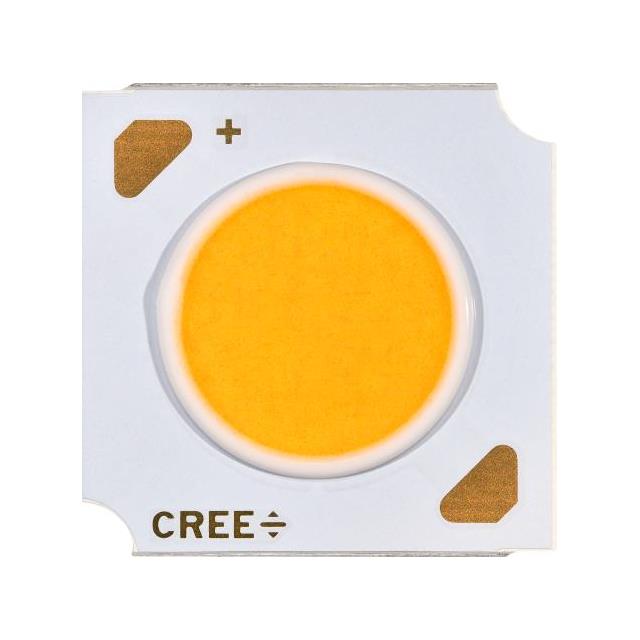

CMB1507-R108-00PN0U0A30H

Active

Cree LED

XLAMP CMB LED WHITE PRO9

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CMB1507-R108-00PN0U0A30H

Active

Cree LED

XLAMP CMB LED WHITE PRO9

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	108	$ 5.58

Description

General part information

CMB1507 Series

LED Lighting COBs Engines Modules Chip On Board (COB) XLamp® CMB1507 White, Warm Square

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CMB1507-R108-00PN0U0A30H	CMB1507 Series

CCT (K)	-	2200 - 6500 K
CCT (K)	-	5-Step MacAdam Ellipse
Color	White, Warm	Cool, White, Warm, Neutral
Configuration	Square	Square
CRI (Color Rendering Index)	90	70 - 95
Current - Max [Max]	600 mA	1.2 - 600 mA
Current - Test	200 mA	200 - 400 mA
Height [z]	1.75 mm	1.75 mm
Lens Type	Flat	Flat
Light Emitting Surface (LES) [diameter]	9 mm	9 mm
Lumens/Watt @ Current - Test	-	117 - 186 lm/W
Luminous Flux @ Current/Temperature	-	787 - 1252 lm
Temperature - Test	85 °C	85 °C
Type	Chip On Board (COB)	Chip On Board (COB)
Viewing Angle	115 °	115 °
Voltage - Forward (Vf) (Typ)	33.5 V	16.8 - 33.5 V

CMB1507 Series

LED COB XLAMP COOL WHT SQU 5700K

...

Part	Current - Max [Max]	Current - Test	Luminous Flux @ Current/Temperature	Type	Height [z]	CRI (Color Rendering Index)	CCT (K)	Light Emitting Surface (LES) [diameter]	Lens Type	Color	Lumens/Watt @ Current - Test	Voltage - Forward (Vf) (Typ)	Viewing Angle	Configuration	Temperature - Test
Cree LED CMB1507-0000-000N0U0A57G	600 mA	200 mA	1024 lm	Chip On Board (COB)	1.75 mm	90	5700 K	9 mm	Flat	Cool, White	153 lm/W	33.5 V	115 °	Square	85 °C
Cree LED CMB1507-0000-000N0H0A27G	600 mA	200 mA	1040 lm	Chip On Board (COB)	1.75 mm	80	2700 K	9 mm	Flat	Warm, White	155 lm/W	33.5 V	115 °	Square	85 °C
Cree LED CMB1507-R108-00PN0U0A35G	600 mA	200 mA		Chip On Board (COB)	1.75 mm	90	3500 K	9 mm	Flat	Warm, White		33.5 V	115 °	Square	85 °C
Cree LED CMB1507-0000-000N0H0A27H	600 mA	200 mA	1040 lm	Chip On Board (COB)	1.75 mm	80	2700 K	9 mm	Flat	Warm, White	155 lm/W	33.5 V	115 °	Square	85 °C
Cree LED CMB1507-R108-00PN0U0A50G	600 mA	200 mA		Chip On Board (COB)	1.75 mm	90	5000 K	9 mm	Flat	Cool, White		33.5 V	115 °	Square	85 °C
Cree LED CMB1507-0000-000F0H0A30G	1.2 A	400 mA	1086 lm	Chip On Board (COB)	1.75 mm	80	3000 K	9 mm	Flat	Warm, White		16.8 V	115 °	Square	85 °C
Cree LED CMB1507-0000-000N0H0A35G	600 mA	200 mA	1108 lm	Chip On Board (COB)	1.75 mm	80	3500 K	9 mm	Flat	Warm, White		33.5 V	115 °	Square	85 °C
Cree LED CMB1507-R108-00PF0U0A50G	1.2 A	400 mA		Chip On Board (COB)	1.75 mm	90	5000 K	9 mm	Flat	Cool, White		16.8 V	115 °	Square	85 °C
Cree LED CMB1507-0000-000F0U0A40G	1.2 A	400 mA	962 lm	Chip On Board (COB)	1.75 mm	90	4000 K	9 mm	Flat	Neutral, White	143 lm/W	16.8 V	115 °	Square	85 °C
Cree LED CMB1507-R108-00PF0Z0A35H	1.2 A	400 mA		Chip On Board (COB)	1.75 mm	95	3500 K	9 mm	Flat	Warm, White		16.8 V	115 °	Square	85 °C
