Description
General part information

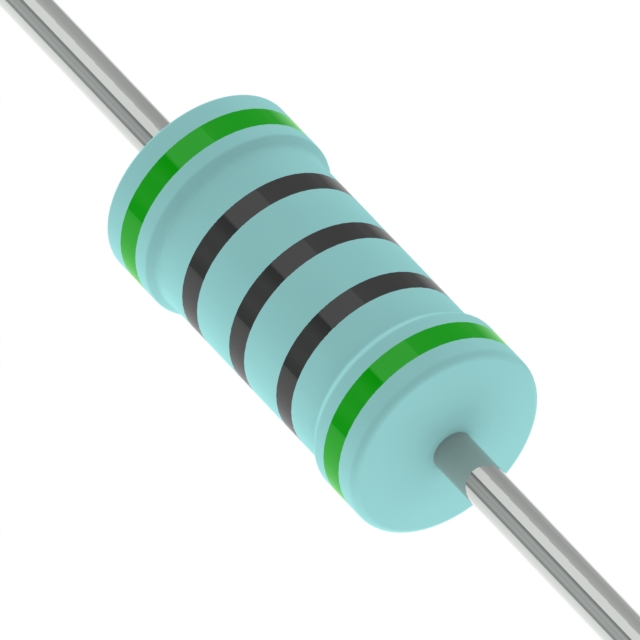

MFR50SDRD52-500R
500 Ohms ±0.5% 0.5W, 1/2W Through Hole Resistor Axial Metal Film
Technical Specifications
Parameters and characteristics for this part
| Specification | MFR50SDRD52-500R |
|---|---|
| Composition | Metal Film |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Package Name | Axial |
| Power (Watts) | 500 mW |
| Power (Watts) Options | 1/2W |
| Resistance | 500 Ohm |
| Size / Dimension Diameter | 0.094 in, 0.248 in |
| Size / Dimension Length | 0.248 in, 0.094 in |
| Temperature Coefficient | 25 ppm/°C |
| Tolerance | 0.5 % |
