T/R+JUG

Active

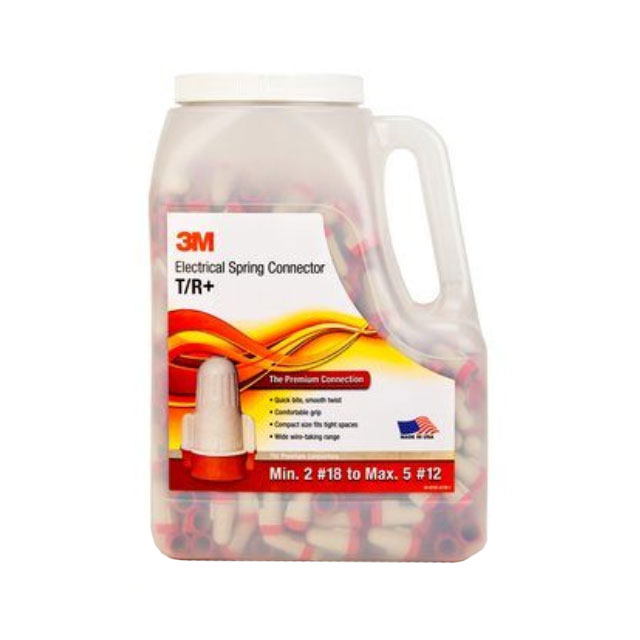

3M PERFORMANCE PLUS WIRE CONNECTOR T/R+JUG, 750 PER JUG

Search across all available documentation for this part.

Active

3M PERFORMANCE PLUS WIRE CONNECTOR T/R+JUG, 750 PER JUG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Terminal Twist On Wire Cap, Wing Connector Twist On 8-22 AWG Tan, Red

Technical documentation and resources

No documents available

Specification	T/R+JUG	T/R Series

Color	Red, Tan	Red, Tan
Features	Flame Retardant, Copper Wire Only	Flame Retardant, Copper Wire Only
Insulation	Fully Insulated	Fully Insulated
Number of Wire Entries	Varies by Wire Size	Varies by Wire Size
Terminal Type	Twist On Wire Cap, Wing	Twist On Wire Cap, Wing
Termination	Twist On	Twist On
Wire Gauge [Max]	22 AWG	22 AWG
Wire Gauge [Min]	8 AWG	8 AWG

Part	Terminal Type	Insulation	Features	Termination	Color	Wire Gauge [Min]	Wire Gauge [Max]	Number of Wire Entries
3M T/R+POUCH	Twist On Wire Cap, Wing	Fully Insulated	Copper Wire Only, Flame Retardant	Twist On	Red, Tan	8 AWG	22 AWG	Varies by Wire Size
3M T/R+JUG	Twist On Wire Cap, Wing	Fully Insulated	Copper Wire Only, Flame Retardant	Twist On	Red, Tan	8 AWG	22 AWG	Varies by Wire Size
