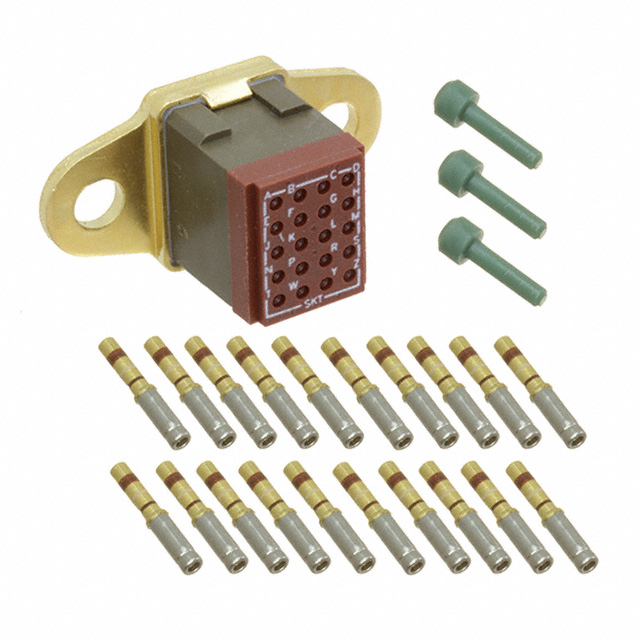

CTJ722K01C-7067

Active

TE Connectivity Raychem Cable Protection

CONN GRND BLOCK SZ22 0.830" L

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

CONN GRND BLOCK SZ22 0.830" L

Technical Specifications

Parameters and characteristics for this part

Part	Type	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Module Capacity	Contact Size	Size / Dimension [z]	Size / Dimension [y]
TE Connectivity Raychem Cable Protection CTJ720E01B-513 [V003]	Ground Block	0.58 "	14.73 mm	0.74 in	18.8 mm	0.955 "	24.26 mm	1	20
TE Connectivity Raychem Cable Protection CTJ-3A-04-4032	Rail					2.072 in	52.63 mm
TE Connectivity Raychem Cable Protection CTJ420E114-513 [V003]	Module	0.672 in	17.07 mm	1.02 "	25.91 mm	1.17 in	29.72 mm	114	20
TE Connectivity Raychem Cable Protection CTJ122E05E [V001]	Feedback Module Block	0.76 "	19.3 mm	0.51 in	12.95 mm	0.672 "	17.07 mm	5	22
TE Connectivity Raychem Cable Protection CTJ620E12N [V003]	Module	0.51 in	12.95 mm	0.652 in	16.56 mm	0.865 in	21.97 mm	12	20
TE Connectivity Raychem Cable Protection CTJ420E333-513	Module	0.672 in	17.07 mm	1.02 "	25.91 mm	1.17 in	29.72 mm	333	20
TE Connectivity Raychem Cable Protection CTJ620E06N-1050	Module	0.36 in		0.53 in		0.865 in	21.97 mm	6	20	9.14 mm	13.46 mm
TE Connectivity Raychem Cable Protection CTJ620E121-1050	Module							12	20
TE Connectivity Raychem Cable Protection CTJ-3D-12-4021	Rail					6.216 in	157.89 mm
TE Connectivity Raychem Cable Protection CTJ420E114-513	Module	0.672 in	17.07 mm	1.02 "	25.91 mm	1.17 in	29.72 mm	114	20

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Grounding Module Environmental Screw Assembly, -67 – 392 °C, DEUTSCH CTJ, Terminal Junction Modules
