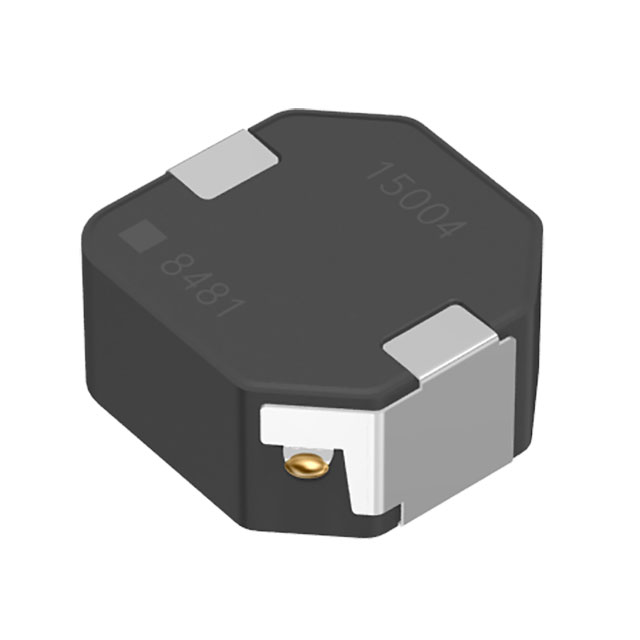

SPM6545VT-220M-D
ActiveEPCOS - TDK Electronics
FIXED IND 22UH 3.2A 0.0946OHM SM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SPM6545VT-220M-D
ActiveEPCOS - TDK Electronics
FIXED IND 22UH 3.2A 0.0946OHM SM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SPM6545VT-220M-D |
|---|---|
| Current - Saturation (Isat) | 3.9 A |
| Current Rating (Amps) | 3.2 A |
| DC Resistance (DCR) | 94.6 mOhm |
| Height - Seated (Max) | 4.5 mm |
| Height - Seated (Max) [Max] | 0.177 " |
| Inductance | 22 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Metal Composite |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Nonstandard |
| Ratings | AEC-Q200 |
| Shielding | Shielded |
| Size / Dimension [x] | 0.276 " |
| Size / Dimension [x] | 7 mm |
| Size / Dimension [y] | 6.5 mm |
| Size / Dimension [y] | 0.256 in |
| Supplier Device Package | 6545 |
| Tolerance | 20 % |
| Type | Wirewound, Drum Core |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.35 | |
| 10 | $ 1.04 | |||
| 25 | $ 0.94 | |||
| 50 | $ 0.88 | |||
| 100 | $ 0.81 | |||
| 250 | $ 0.73 | |||
| 500 | $ 0.68 | |||
| Digi-Reel® | 1 | $ 1.35 | ||
| 10 | $ 1.04 | |||
| 25 | $ 0.94 | |||
| 50 | $ 0.88 | |||
| 100 | $ 0.81 | |||
| 250 | $ 0.73 | |||
| 500 | $ 0.68 | |||
| Tape & Reel (TR) | 1000 | $ 0.63 | ||
| 2000 | $ 0.58 | |||
| 3000 | $ 0.56 | |||
| 5000 | $ 0.52 | |||
| 7000 | $ 0.52 | |||
Description
General part information
SPM6545VT-220M-D
22 µH Shielded Drum Core, Wirewound Inductor 3.2 A 94.6mOhm Nonstandard
