LFWLP350-1303

Active

EOS Power

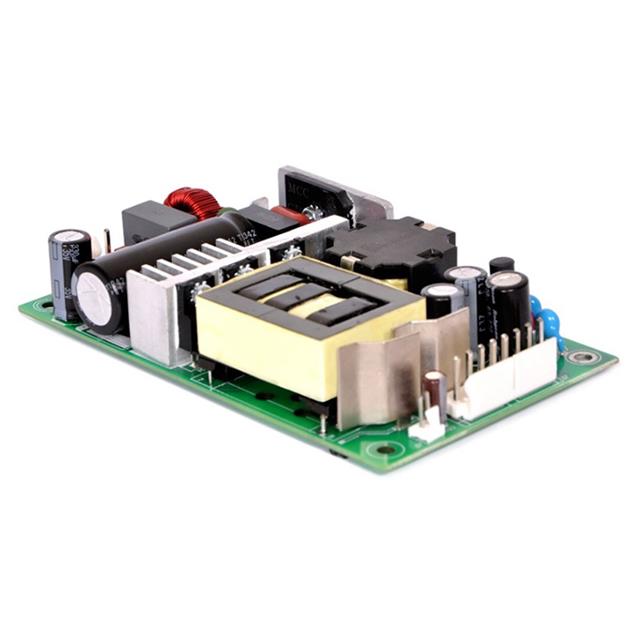

AC/DC CONVERTER 24V 200W

Deep-Dive with AI

Search across all available documentation for this part.

LFWLP350-1303

Active

EOS Power

AC/DC CONVERTER 24V 200W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	LFWLP350-1303	WLP350 Series

Accessory Type	-	Cover Assembly
Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	UL, NEMKO, cUL, CE, CB, CCC	UL, NEMKO, cUL, CE, CB, CCC
Current - Output 1	8.33 A	3.45 - 15 A
Efficiency	93 %	92 - 94 %
Features	Universal Input, Adjustable Output, PFC, Standby Output	Universal Input, Adjustable Output, PFC, Standby Output
For Use With/Related Products	-	WLP350 Series
Minimum Load Required	False	False
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	1	1
Power (Watts)	350 W	225 - 350 W
Power (Watts)	200 W	180 - 300 W
Size / Dimension [x]	5 in	5 in
Size / Dimension [x]	127 mm	127 mm
Size / Dimension [y]	3 "	3 "
Size / Dimension [y]	76.2 mm	76.2 mm
Size / Dimension [z]	1 "	1 "
Size / Dimension [z]	25.4 mm	25.4 mm
Standard Number	62368-1	62368-1
Type	Open Frame	Open Frame
Voltage - Input	390 VDC	390 VDC
Voltage - Input [Max]	264 VAC	264 VAC
Voltage - Input [Min]	90 VAC	90 VAC
Voltage - Isolation	3000 V	3000 V
Voltage - Output 1	24 V	12 - 48 V

WLP350 Series

AC/DC CONVERTER 15V 180W

Part	Type	Efficiency	Current - Output 1	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Standard Number	Applications	Approval Agency	Mounting Type	Voltage - Isolation	Power (Watts)	Power (Watts)	Voltage - Output 1	Features	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Input	Number of Outputs
EOS Power LFWLP350-1002	Open Frame	92 %	12 A	1 "	25.4 mm	3 "	5 in	127 mm	76.2 mm	62368-1	ITE (Commercial)	CB, CCC, CE, cUL, NEMKO, UL	Chassis Mount	3000 V	325 W	180 W	15 V	Adjustable Output, PFC, Standby Output, Universal Input	90 VAC	264 VAC	390 VDC	1
EOS Power WLP350-1001-II	Open Frame	92 %	15 A	1 "	25.4 mm	3 "	5 in	127 mm	76.2 mm	62368-1	ITE (Commercial)	CB, CCC, CE, cUL, NEMKO, UL	Chassis Mount	3000 V		180 W, 300 W	12 V	Adjustable Output, PFC, Standby Output, Universal Input	90 VAC	264 VAC	390 VDC	1
EOS Power WLP350-1002-II	Open Frame	92 %	12 A	1 "	25.4 mm	3 "	5 in	127 mm	76.2 mm	62368-1	ITE (Commercial)	CB, CCC, CE, cUL, NEMKO, UL	Chassis Mount	3000 V	325 W	180 W	15 V	Adjustable Output, PFC, Standby Output, Universal Input	90 VAC	264 VAC	390 VDC	1
EOS Power LFWLP350-1302	Open Frame	92 %	12 A	1 "	25.4 mm	3 "	5 in	127 mm	76.2 mm	62368-1	ITE (Commercial)	CB, CCC, CE, cUL, NEMKO, UL	Chassis Mount	3000 V		180 W, 270 W	15 V	Adjustable Output, PFC, Standby Output, Universal Input	90 VAC	264 VAC	390 VDC	1
EOS Power LFWLP350-1004	Open Frame	94 %	4.17 A	1 "	25.4 mm	3 "	5 in	127 mm	76.2 mm	62368-1	ITE (Commercial)	CB, CCC, CE, cUL, NEMKO, UL	Chassis Mount	3000 V	350 W	200 W	48 V	Adjustable Output, PFC, Standby Output, Universal Input	90 VAC	264 VAC	390 VDC	1
EOS Power LFWLP350-1304	Open Frame	94 %	4.17 A	1 "	25.4 mm	3 "	5 in	127 mm	76.2 mm	62368-1	ITE (Commercial)	CB, CCC, CE, cUL, NEMKO, UL	Chassis Mount	3000 V	350 W	200 W	48 V	Adjustable Output, PFC, Standby Output, Universal Input	90 VAC	264 VAC	390 VDC	1
EOS Power LFWLP350-1306	Open Frame	94 %	3.45 A	1 "	25.4 mm	3 "	5 in	127 mm	76.2 mm	62368-1	ITE (Commercial)	CB, CCC, CE, cUL, NEMKO, UL	Chassis Mount	3000 V	350 W	200 W		Adjustable Output, PFC, Standby Output, Universal Input	90 VAC	264 VAC	390 VDC	1
EOS Power LFWLP350-1005	Open Frame	93 %	6.67 A	1 "	25.4 mm	3 "	5 in	127 mm	76.2 mm	62368-1	ITE (Commercial)	CB, CCC, CE, cUL, NEMKO, UL	Chassis Mount	3000 V	350 W	200 W	30 V	Adjustable Output, PFC, Standby Output, Universal Input	90 VAC	264 VAC	390 VDC	1
EOS Power LFWLP350-1001	Open Frame	92 %	15 A	1 "	25.4 mm	3 "	5 in	127 mm	76.2 mm	62368-1	ITE (Commercial)	CB, CCC, CE, cUL, NEMKO, UL	Chassis Mount	3000 V		180 W, 300 W	12 V	Adjustable Output, PFC, Standby Output, Universal Input	90 VAC	264 VAC	390 VDC	1
EOS Power WLP350-1301-II	Open Frame	92 %	15 A	1 "	25.4 mm	3 "	5 in	127 mm	76.2 mm	62368-1	ITE (Commercial)	CB, CCC, CE, cUL, NEMKO, UL	Chassis Mount	3000 V	225 W	180 W	12 V	Adjustable Output, PFC, Standby Output, Universal Input	90 VAC	264 VAC	390 VDC	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 126.95
		54	$ 111.33

Description

General part information

WLP350 Series

Open Frame AC DC Converters 1 Output 24V 90 ~ 264 VAC, 390VDC Input
